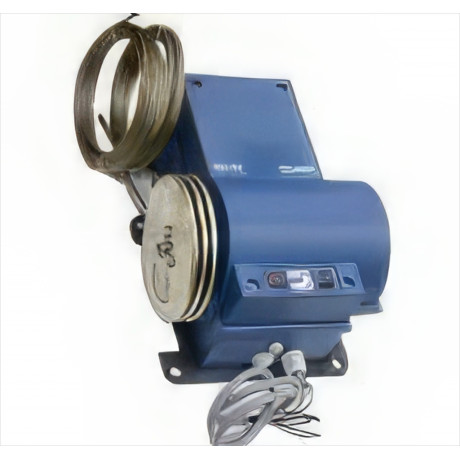

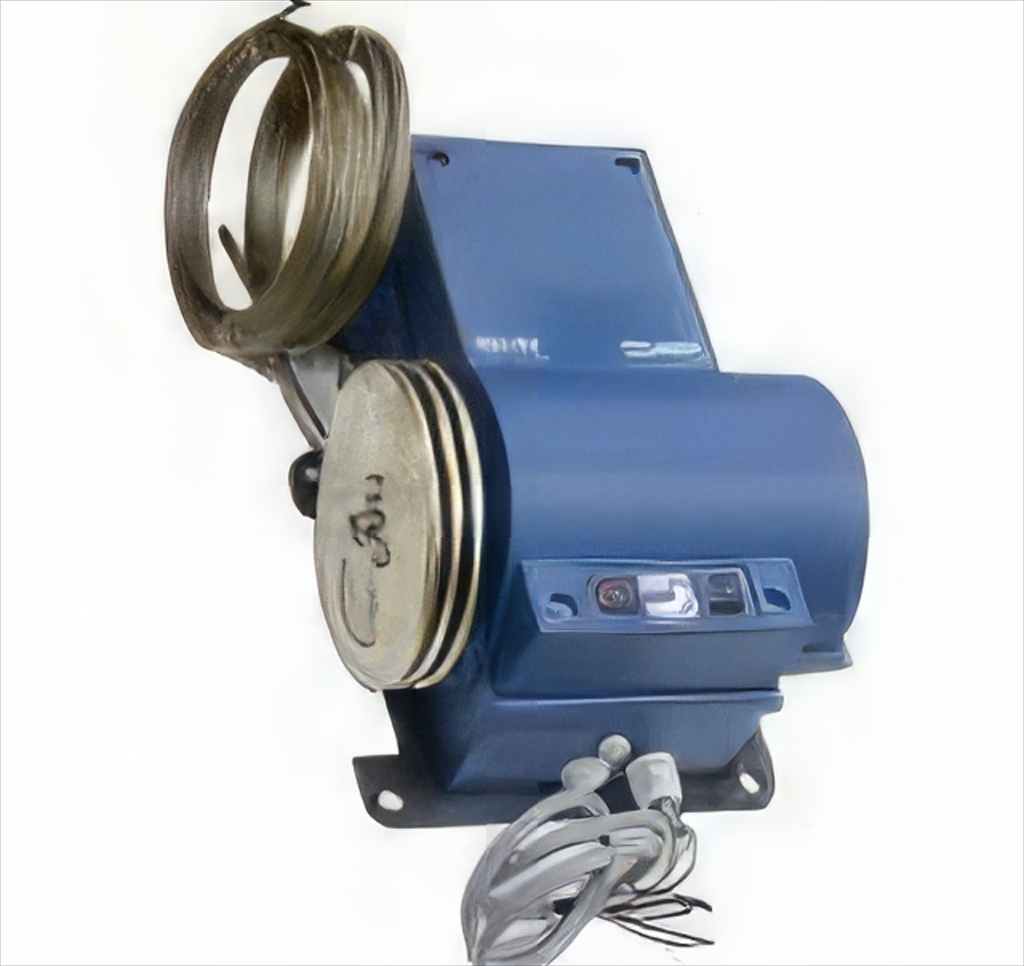

Skov Winch motor 380mm DA 174 stepless 24V Code: 432084

Skov Winch motor 380mm DA 174 stepless 24V Code: 432084

In stock in Europe
Article: 432084
Minimum order amount from 300 UAH
Write a review
Check the price

Features

Brand
Current strength, A
1.6 A
Food, V
24
IP protection class
IP X6
Potentiometer, kOhm
0-10
Producing country
Denmark

Description

Servo drive DA 174 rod 380 mm stepless 24V DA 174 Electric motor 24 V 432084 DA 174 Electric motor 380 mm stepless 24V Operating voltage 24 V DC ± 15% Power consumption 1.6 A Break 25% The maximum tensile force is 100 kg Temperature, operation -10 - 55 ° C Length of extraction 380 mm The total length is at least 646 mm The total length is a maximum of 1066 mm Degree of protection * IP X6 Control signal Stepless Potentiometer 0-10 kΩ Control unit Dimensions 260 x 160 x 140 Degree of protection * IP X5
