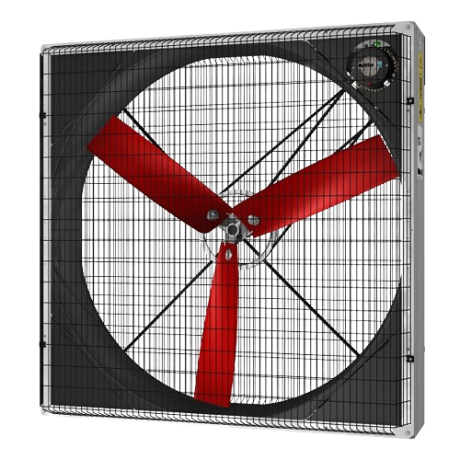

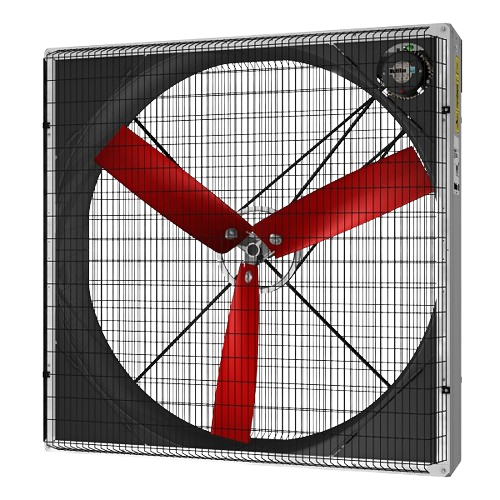

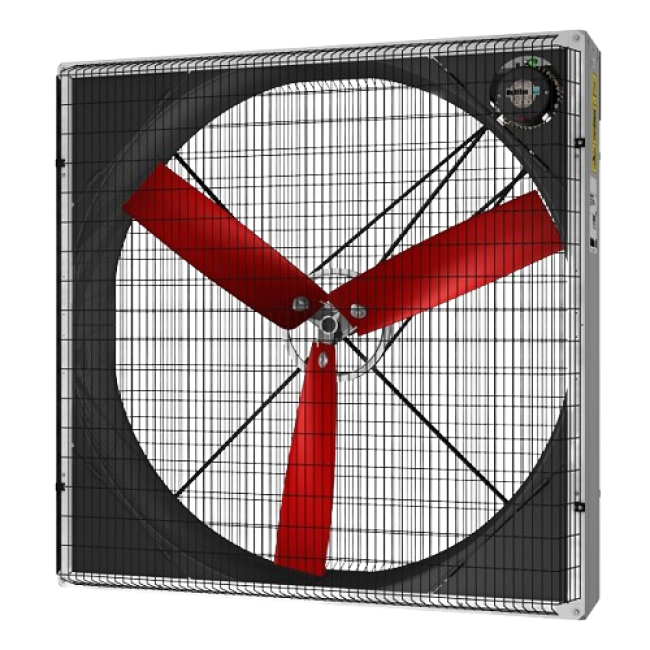

Axial fan, Multifan, 1600 W (V4D13A2M11039)

Axial fan, Multifan, 1600 W (V4D13A2M11039)

In stock in Europe
Article: V4D13A2M11039
Write a review
31 666 ₴

Features

Brand
Air volume at 0 Pa (0.00 in. wg)
46700 m3/h
Air volume at 50 Pa (0.2 in. wg)
35000 m3/h
Diameter
1286 mm
Diameter, mm
1286
Fan type
Wall / axial

Description

High performance captured in a compact design. Galvanized Box Fans are often used in buildings where a lot of ventilation is required.The box of the fan makes it easy to position the fan in a wall, and to equip your fan with add-ons such as a shutter. In addition, the Galvanized Box Fan can also be combined with light traps or air filters.

Benefits and warranty

  • High quality

    The equipment is manufactured by leading European manufacturers, using modern technologies and materials.

  • Professional support

    Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.

  • Competitive prices

    Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.

  • Returns and Exchanges

    We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

  • Nova Poshta
  • By courier in Kiev
  • Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

  • Payment in cash
  • Payment Apple Pay / Google Pay
  • Payment by installments Monobank
  • Payment online Visa / MasterCard
  • Payment by card
  • Cash on delivery "Nova Poshta"

Multifan wall fan made of galvanised steel 130 cm 1600 W

The Multifan wall fan made of galvanised steel with a diameter of 130 cm and a power of 1600 W is a reliable and high-performance solution for providing efficient ventilation in large rooms. Thanks to its sophisticated design and the possibility to equip it with additional elements, the fan is ideal for industrial and agricultural facilities.


Key benefits:

  • Power and performance: With a power output of 1600 W, the fan delivers an intense airflow that is ideal for large spaces.
  • Durable galvanised construction: The galvanised steel casing provides corrosion resistance, making the fan suitable for use in environments with high humidity and dirt.
  • Flexible configuration: The fan can be equipped with additional components such as louvres, light reflectors or air filters to maximise customisation.
  • Easy installation: The wall-mounted design facilitates installation and saves space in the room.

Applications:

  • Industrial buildings: workshops, warehouses, production facilities.
  • Agricultural buildings: cowsheds, poultry houses, greenhouses.
  • Public and commercial premises with high ventilation requirements.

Features:

  • Diameter: 130 cm.
  • Power: 1600 W.
  • Material: Galvanised steel for durability and reliability.
  • Customisation options: Equipped with additional accessories to increase efficiency.

Multifan fans are distinguished by their durability, stable performance and ability to operate in difficult conditions. It is the choice of those who seek a combination of reliability and modern technology.

Features Axial fan, Multifan, 1600 W (V4D13A2M11039)

Air volume at 0 Pa (0.00 in. wg)
46700 m3/h
Air volume at 50 Pa (0.2 in. wg)
35000 m3/h
Diameter
1286 mm
Diameter, mm
1286
Fan type
Wall / axial

Reviews (0)

There are no reviews for this product.

Buy together with Axial fan, Multifan, 1600 W (V4D13A2M11039)

Specification Axial fan, Multifan, 1600 W (V4D13A2M11039)

Air volume at 0 Pa (0.00 in. wg)
46700 m3/h
Air volume at 50 Pa (0.2 in. wg)
35000 m3/h
Diameter
1286 mm
Diameter, mm
1286
Fan type
Wall / axial
Frequency
50 Hz
Insulation Class
Cl.f
IP Class
Ip55
Material
Pg
Max. ambient temperature
40 °C
Maximum current
5.4/3.1 A
Min. ambient temperature
-25 °C
Phase
3
Power consumption
1600 W
Rated current, A
509/300 mA
Voltage
230/400 V
Weight
56.4 kg
Weight, kg
56.4
Леза
3
Система
N
