Features

Brand

Vostermans

Air volume at 0 Pa (0.00 in. wg)

50300 m3/h

Air volume at 50 Pa (0.2 in. wg)

39000 m3/h

Diameter

1375 mm

Diameter, mm

1375

Fan type

Wall / axial

All characteristics

Download technical documentation

Description

High performance captured in a compact design. Galvanized Box Fans are often used in buildings where a lot of ventilation is required.The box of the fan makes it easy to position the fan in a wall, and to equip your fan with add-ons such as a shutter. In addition, the Galvanized Box Fan can also be combined with light traps or air filters.

Download technical documentation

Benefits and warranty

High quality

The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support

Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices

Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges

We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card
Cash on delivery "Nova Poshta"

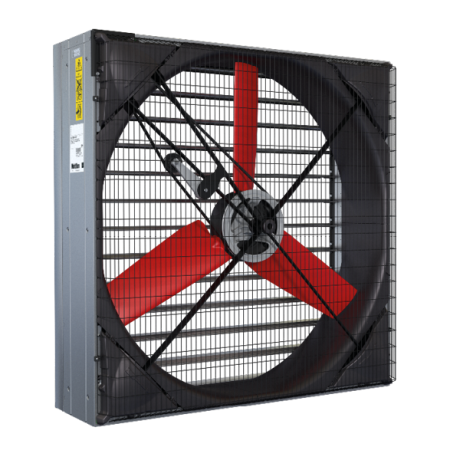

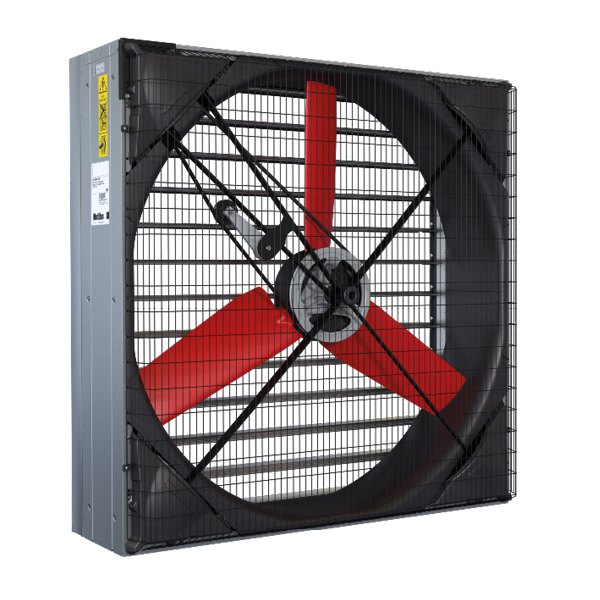

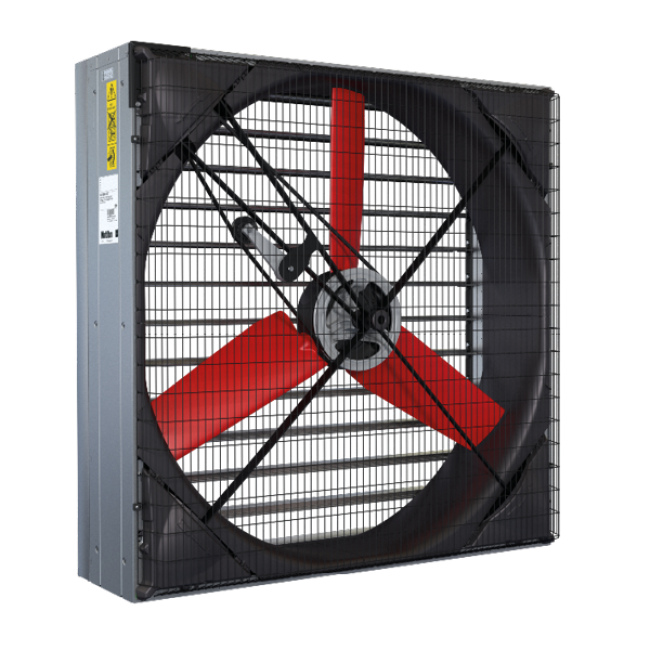

Wall-mounted exhaust fan made of galvanised steel Multifan 140 cm 1650 W

The Multifan wall-mounted exhaust fan is a highly efficient equipment for ventilation of industrial, agricultural and commercial premises. Thanks to its robust galvanised steel casing, the fan demonstrates reliability, durability and resistance to difficult operating conditions.

Product benefits:

High performance: Provides intensive air exchange, which is essential for maintaining clean and fresh air in the room.
Compact wall design: The box design allows for easy wall mounting without additional installation costs.
Additional features: Can be fitted with louvres, light reflectors or air filters to increase functionality.
Corrosion resistance: Galvanised steel provides protection for the fan in wet and corrosive environments.
Versatility: Meets a variety of ventilation needs in different areas of operation.

Applications:

Agriculture: Poultry houses, pigsties, greenhouses, farms.
Industrial facilities: Warehouses, workshops, production facilities.
Commercial buildings: Workshops, garages, retail space.
Public spaces: Sports complexes, exhibition centres, hangars.

The Multifan exhaust wall fan is a combination of modern design, high performance and robust construction. Thanks to the possibility of expanding with additional components, this fan is the optimal solution for creating high-quality ventilation in any environment.

Features Axial fan, Multifan, 1650 W (G4D14A1M11236)

Air volume at 0 Pa (0.00 in. wg)

50300 m3/h

Air volume at 50 Pa (0.2 in. wg)

39000 m3/h

Diameter

1375 mm

Diameter, mm

1375

Fan type

Wall / axial

All characteristics

Reviews (0)

There are no reviews for this product.

Buy together with Axial fan, Multifan, 1650 W (G4D14A1M11236)

Specification Axial fan, Multifan, 1650 W (G4D14A1M11236)

Air volume at 0 Pa (0.00 in. wg)

50300 m3/h

Air volume at 50 Pa (0.2 in. wg)

39000 m3/h

Diameter

1375 mm

Diameter, mm

1375

Fan type

Wall / axial

Frequency

50 Hz

Insulation Class

Cl.f

IP Class

Ip55

Material

Max. ambient temperature

40 °C

Maximum current

6.0/3.5 A

Min. ambient temperature

-25 °C

Phase

Power consumption

1650 W

Rated current, A

560/330 mA

Voltage

230/400 V

Weight

70.6 kg

Weight, kg

70.6
