Feeder for broilers Big Dutchman Emperor 60 HY (11-31-6102)

How the Big Dutchman Emperor 60 HY broiler feeder works

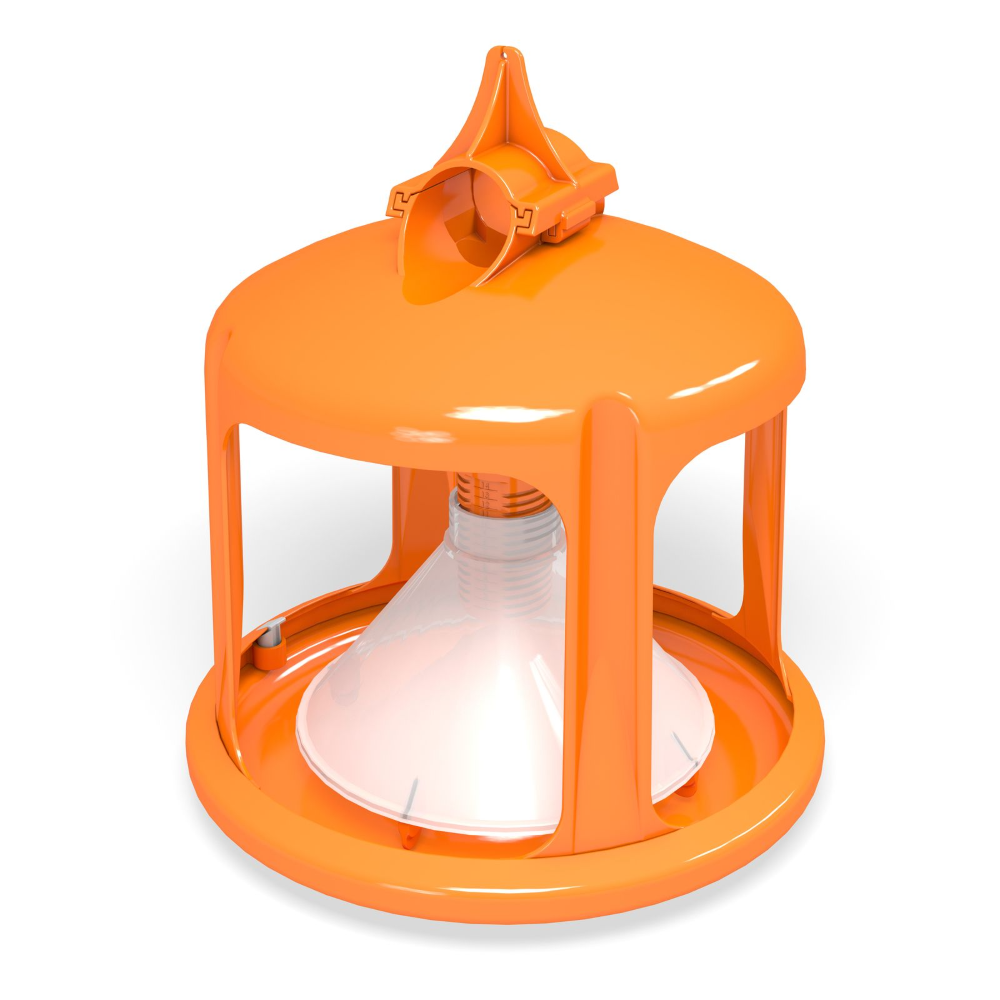

The Big Dutchman Emperor 60 HY broiler feeder is a highly efficient feeder specially designed for parent stock broilers in automated feeding systems.

The HY model is characterised by its increased height, which provides better control over access to feed and reduces spillage. Thanks to its well-thought-out design, the feeder combines efficiency, reliability and ease of operation.

Feed is fed through a feed pipe and distributed evenly into the feeder tray. The design allows birds to select feed naturally, reducing competition between them. High plate sides and a grid prevent feed spillage, while special openings allow each bird to easily access the feed. Thanks to its high profile, the HY model is particularly suitable for larger or more active birds.

Advantages of the Big Dutchman Emperor 60 HY broiler feeder design:

• High tray (HY) — ensures better hygiene and less feed loss.
• Durable materials — resistant to corrosion, mechanical wear and chemical influences.
• Effective grid design — prevents birds from climbing inside.
• Compatible with Big Dutchman automation — for increased feeding efficiency.
• Easy to clean and dismantle — ensures hygienic housing conditions.

Who is the Big Dutchman Emperor 60 HY broiler feeder suitable for?

• Broiler parent stock
• Breeding hens and other large poultry
• Intensive farming operations
• Automated poultry farms

Installation and maintenance of the Big Dutchman Emperor 60 HY broiler feeder:

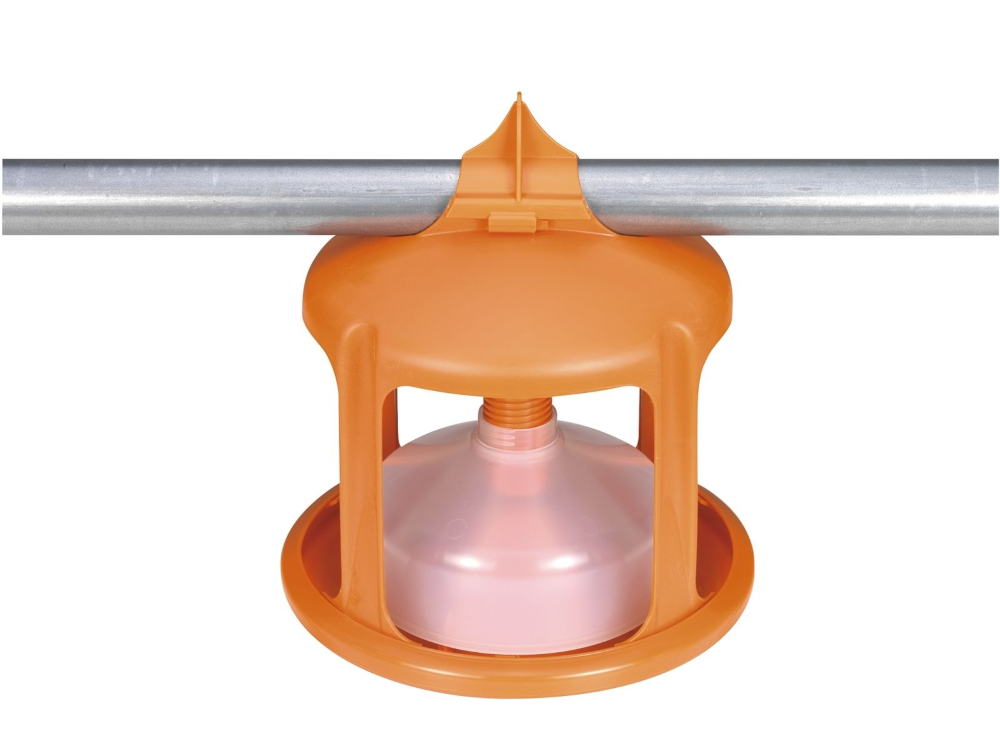

The Big Dutchman Emperor 60 HY feeder can be installed without tools — simply secure it to a standard Ø45 mm feed pipe using the factory-fitted locks. The suspension height should be adjusted according to the age of the birds to ensure easy access to the feed. For hygiene reasons, we recommend daily visual inspection, cleaning of the plate from feed residues and periodic disinfection after each rearing cycle. It is also important to regularly check the condition of the grid, feed mechanism and fastenings to avoid malfunctions.

Installation of the Big Dutchman Emperor 60 HY feeder:

• Install the feeder on a feed pipe with a diameter of 45 mm.
• Make sure that the feeder is securely fixed to the pipe using the standard fasteners.
• Adjust the suspension height according to the age of the birds.
• Adjust the feed level.

Maintenance of the Big Dutchman Emperor 60 HY feeder:

• Check daily for feed residues or contamination.
• Wash the plate and grid with warm water (with detergent if necessary).
• Disinfect after each rearing cycle.
• Check the condition of the fasteners and replace worn parts.

Frequently asked questions about the Big Dutchman Emperor 60 HY broiler feeder

What is the difference between the HY and classic models? HY is a model with high sides, which is better suited for larger or more active birds and reduces feed loss.

How many birds can one feeder serve? One feeder can feed up to 45 birds of the parent flock.

Do I need special tools for installation? No, installation is done manually without special tools.

How often should the feeder be cleaned? It is recommended to clean weekly and disinfect after each rearing cycle.
