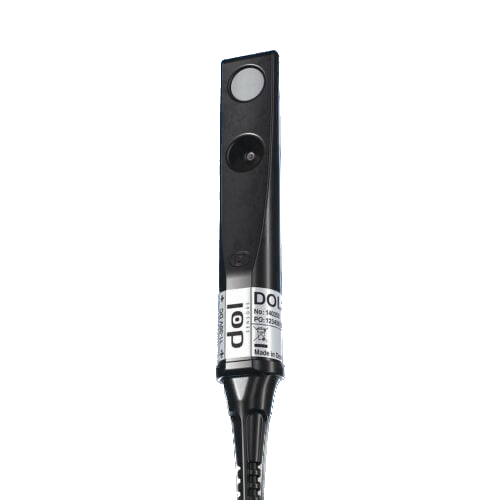

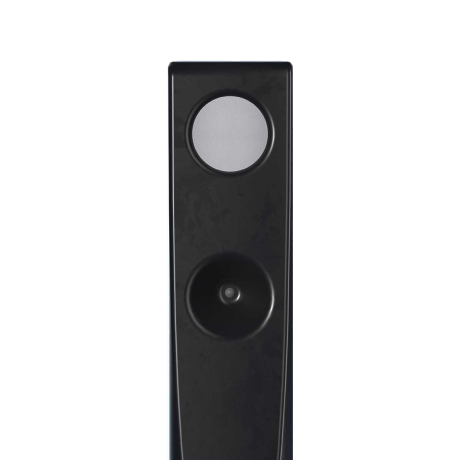

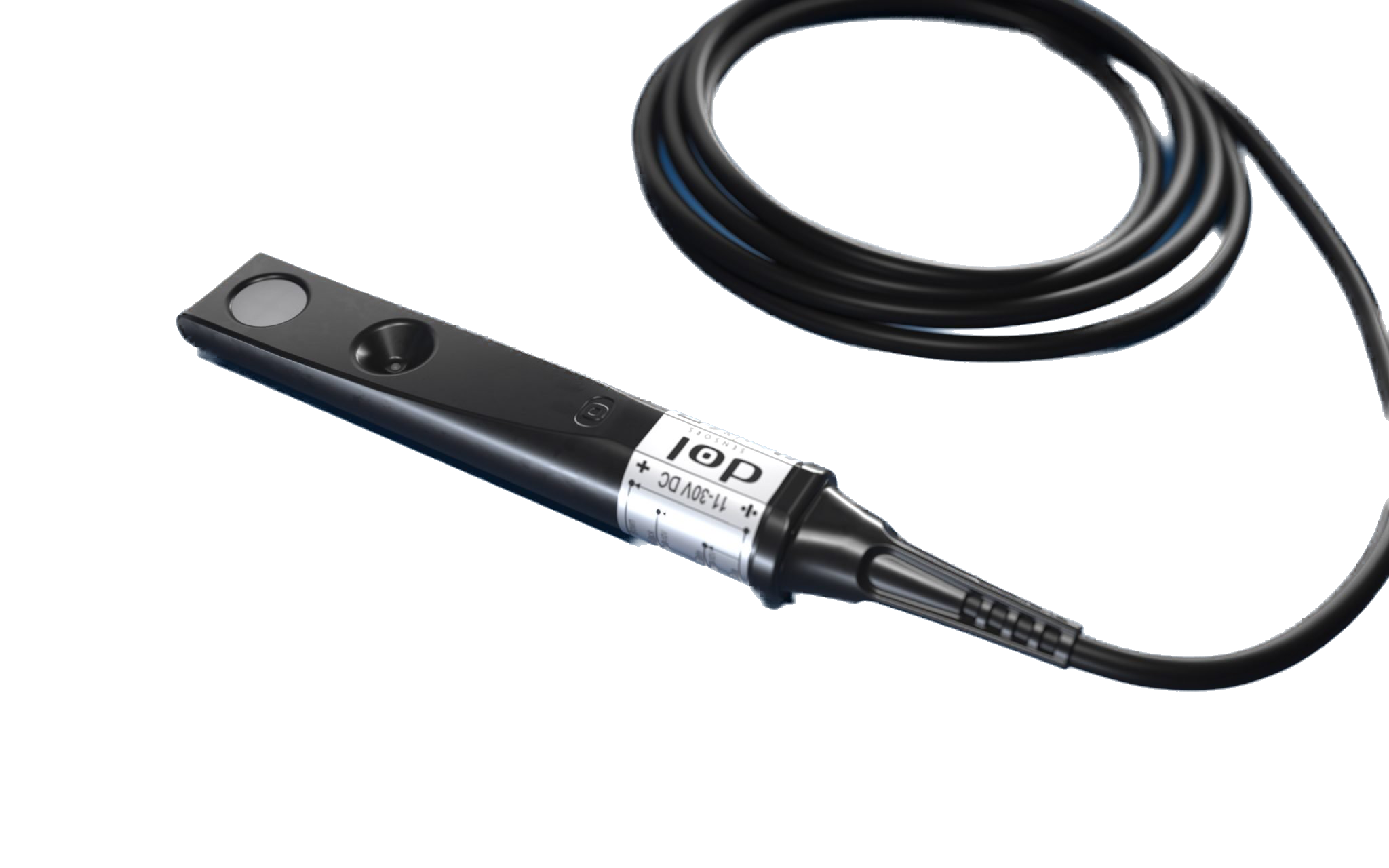

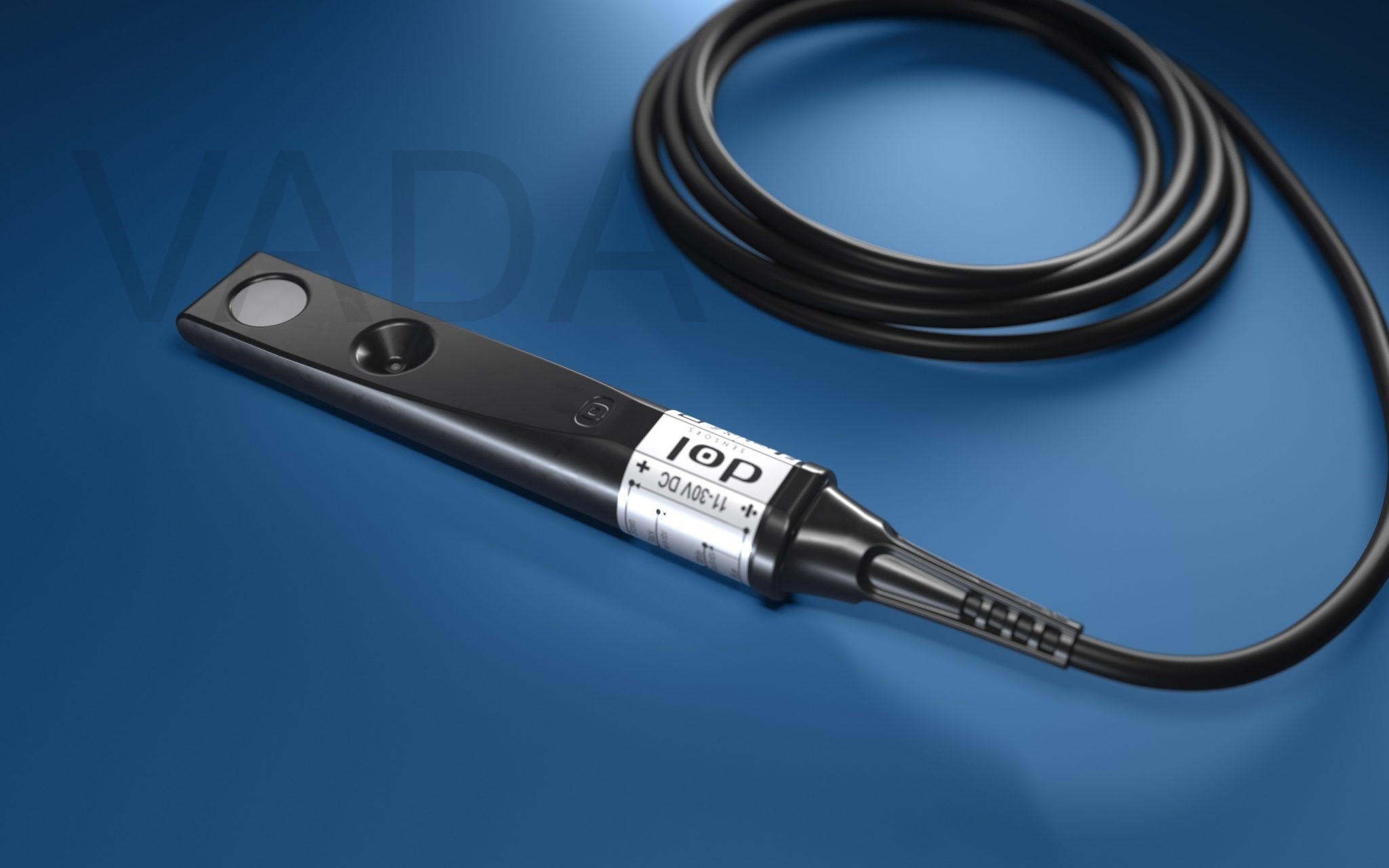

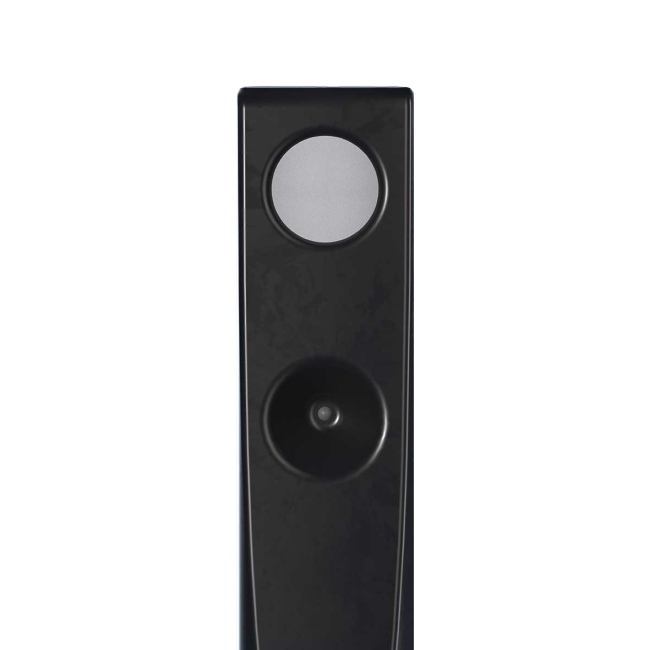

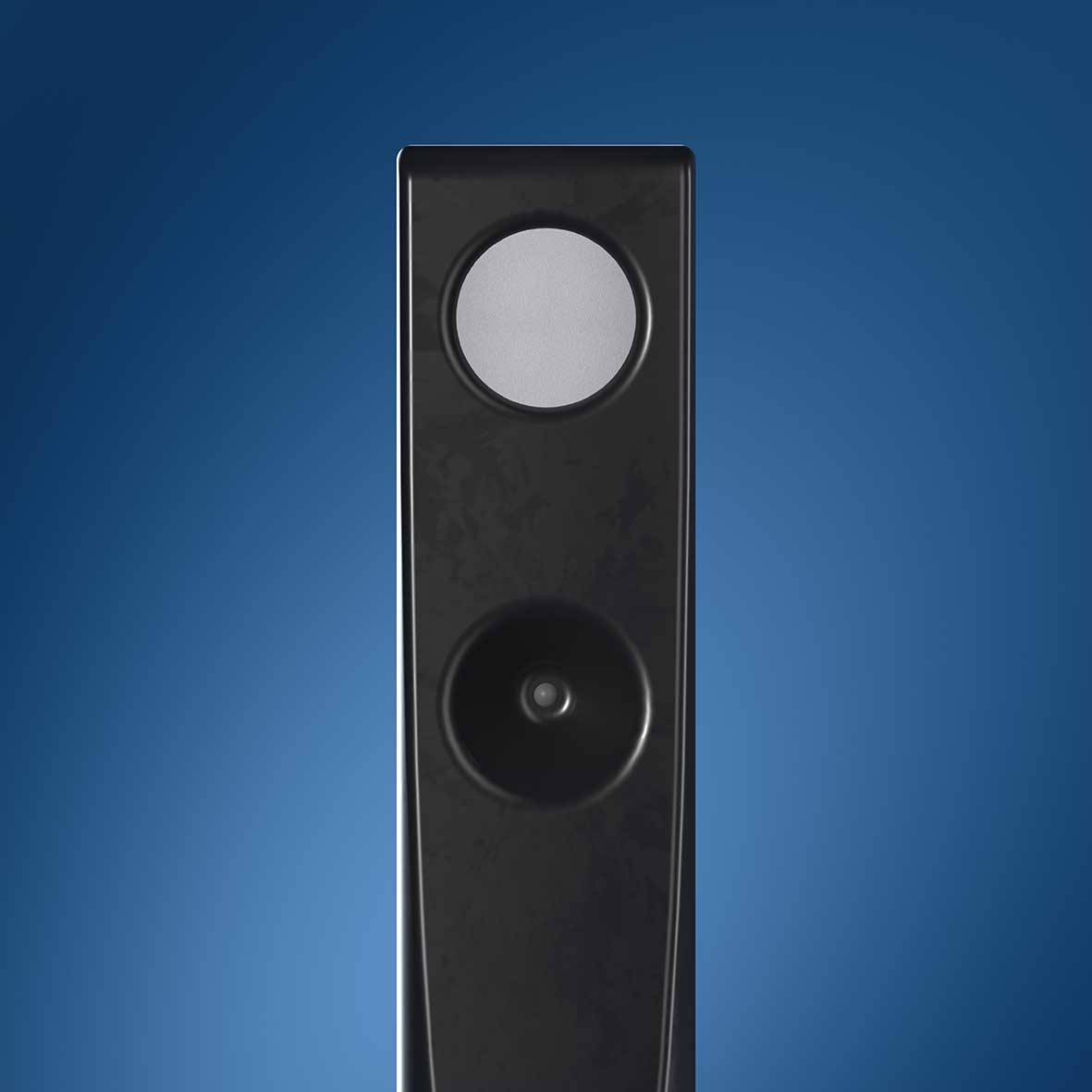

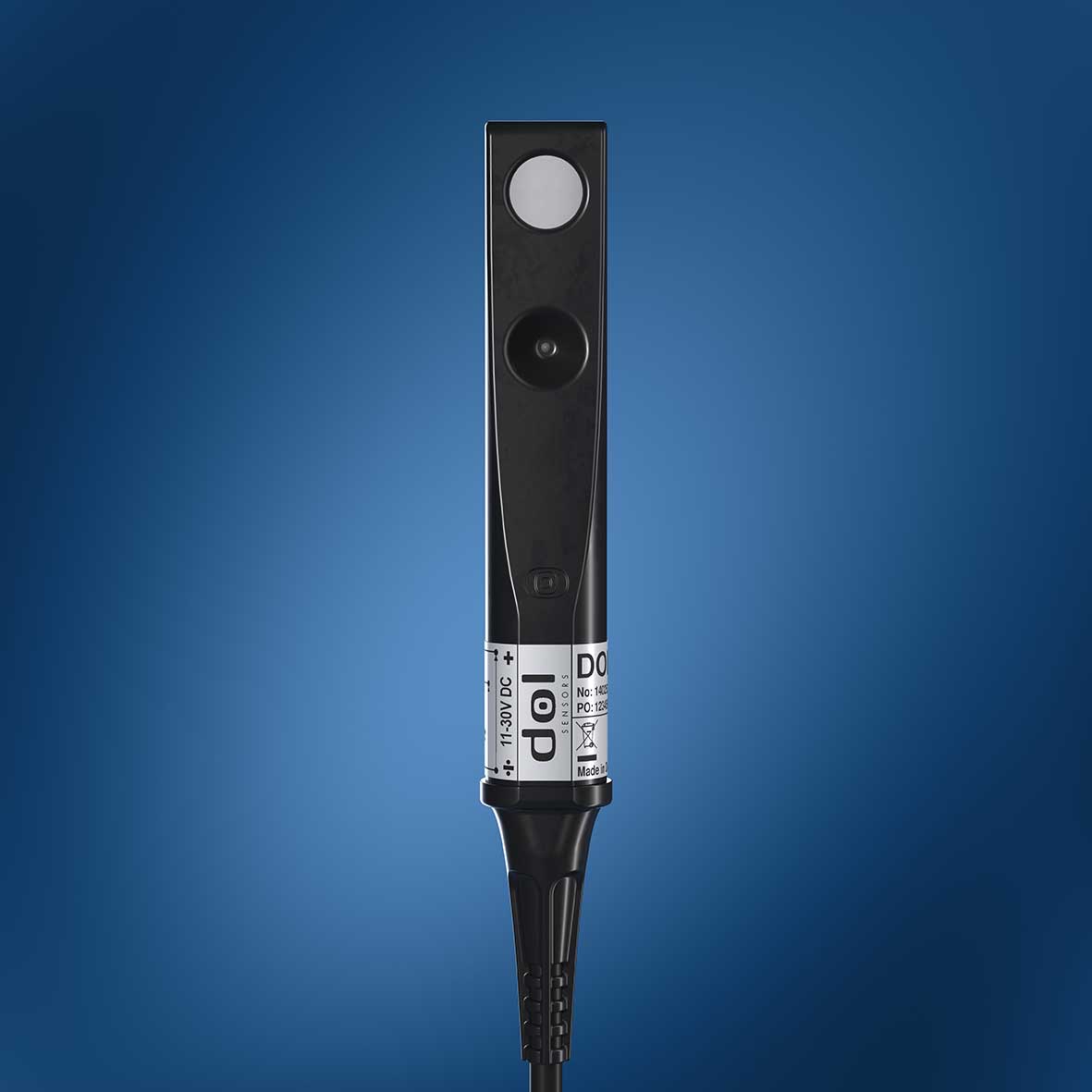

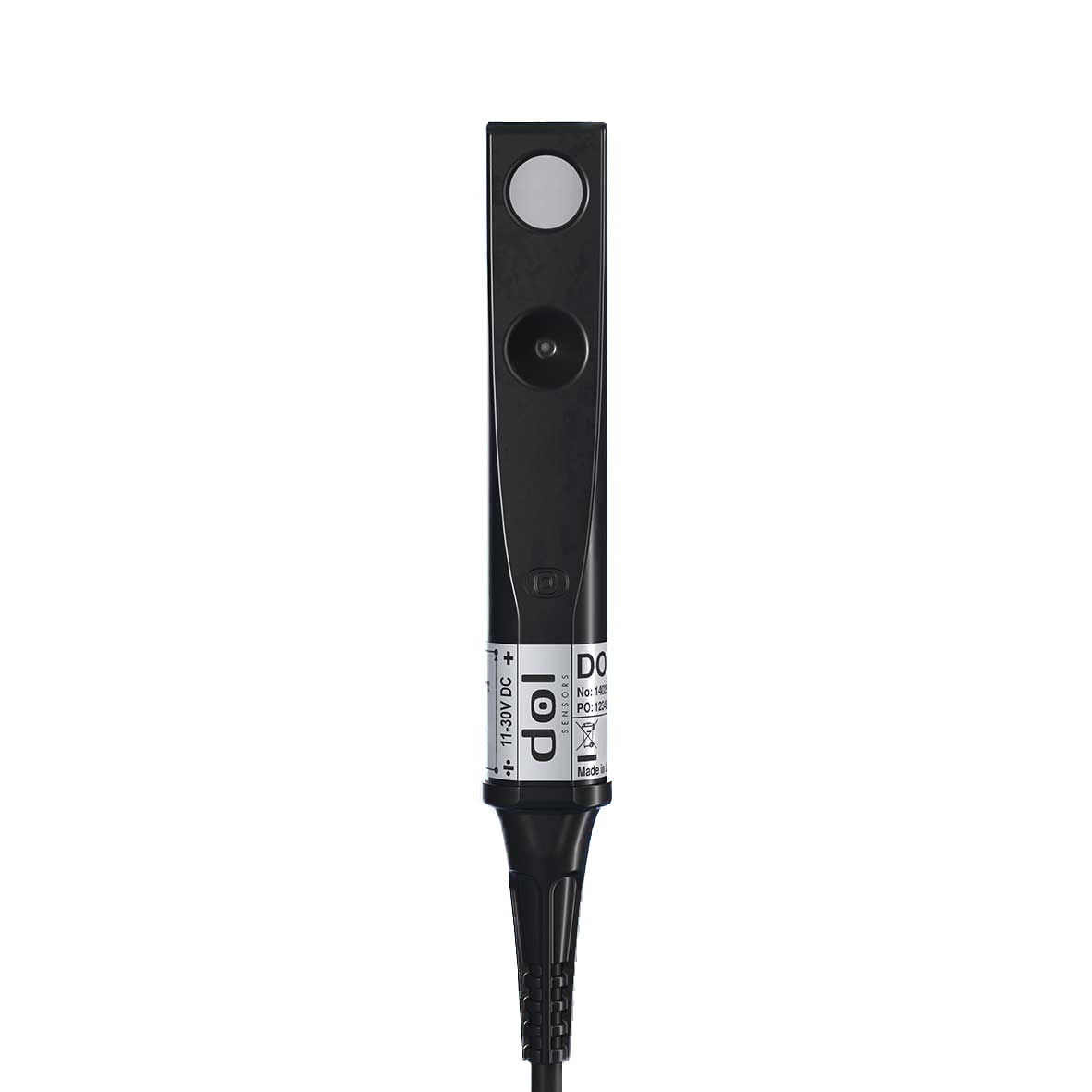

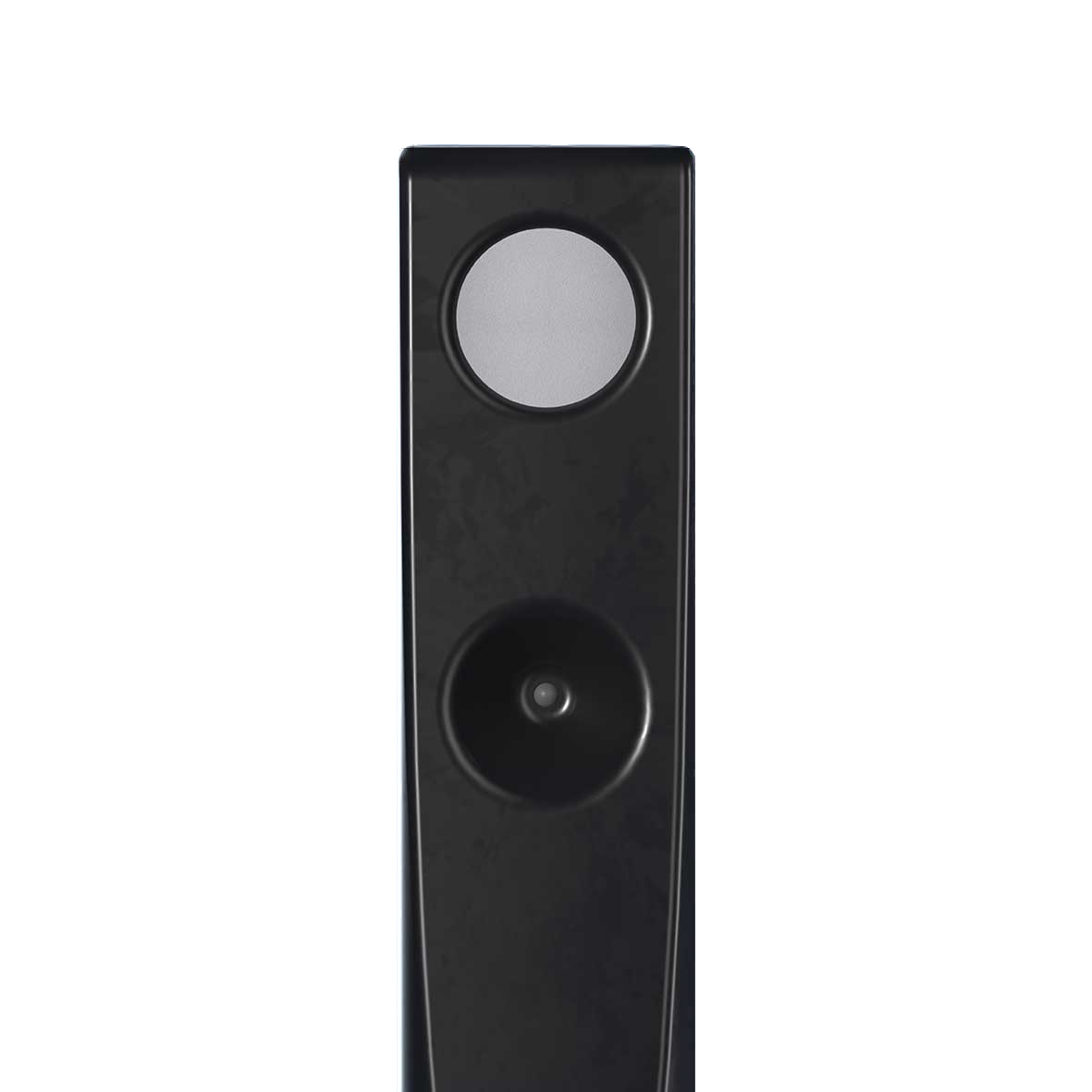

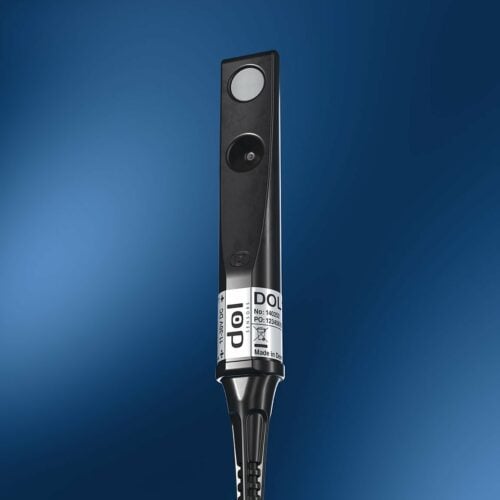

Humidity sensor DOL 104 (140263)

Humidity sensor DOL 104 (140263)

In stock in Europe
Article: 140263
Reviews (1)
Write a review
7 893 ₴

Features

Brand
Accuracy
± 2% RH (40–85 %) ± 3% RH (10–95 %) at 0–40 °C
Ambient temperature
-40 - +60 °C
Cable
2 m 3 x 22 AWG / 0.34 mm²
Current strength, A
12 mA no load, 35 mA max. load
Initial resistance
< 1 Ω

Description

DOL 104 is a high-precision sensor for vibrating aqueous fluid. The sensor of fragmentation is for use in industrial premises, and is also ideally suited for use in many other industries. The VOLOG sensor DOL 104 has one analog output from a very low output support and is completely protected from short circuits and interruptions during the hour of connection. A special sensitive element and a built-in filter make it possible to sterilize the sensor in food areas with permanently high moisture content. The sensor is controlled by a microprocessor and has a double-color LED, which signals the working mill and the detection of defects. It’s a dry bag, because you don’t have to dismantle the sensor for an hour of installation.

Benefits and warranty

  • High quality

    The equipment is manufactured by leading European manufacturers, using modern technologies and materials.

  • Professional support

    Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.

  • Competitive prices

    Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.

  • Returns and Exchanges

    We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

  • Nova Poshta
  • By courier in Kiev
  • Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

  • Payment in cash
  • Payment Apple Pay / Google Pay
  • Payment by installments Monobank
  • Payment online Visa / MasterCard
  • Payment by card
  • Cash on delivery "Nova Poshta"

DOL 104 Humidity Sensor


A High-Precision Sensor for Measuring Relative Humidity

The DOL 104 humidity sensor measures relative humidity with very high precision.

Monitoring humidity in livestock houses is crucial to ensure an optimum climate in livestock houses and increase animal welfare.

DOL 104 is specially designed for use in the harsh environment with constant high humidity found in livestock houses. However, the sensor is also suitable for various industrial applications and is easily adapted to all types of farm management systems.

Benefits:

-Ensure an optimal climate;

-Increase animal welfare;

-Decrease risk of illness.

Advantages:

-Specially designed for the harsh environment in livestock houses;

-A protective cap eliminates the need to remove when cleaning;

-Very low output resistance;

-Full protection against short circuits and wiring failures;

-Measures humidity with high precision;

-Compatible with all types of farm management systems and controllers.


The sensor has an analogue output with a very low output resistance. With full protection against short circuits and wiring failures.

A microprocessor controls the sensor and has a two-color light emitting diode (LED) for communication of operation status and error diagnostics. A protective cap is available, eliminating the need to remove the sensor when cleaning the livestock house.

Features Humidity sensor DOL 104 (140263)

Accuracy
± 2% RH (40–85 %) ± 3% RH (10–95 %) at 0–40 °C
Ambient temperature
-40 - +60 °C
Cable
2 m 3 x 22 AWG / 0.34 mm²
Current strength, A
12 mA no load, 35 mA max. load
Initial resistance
< 1 Ω

Reviews (1)

Олександр
Використовую цей датчик для контролю мікроклімату в пташнику. Працює стабільно, передає точні дані по вологості. Підключення без штекера зручне, якщо маєте свою проводку. Радує широкий діапазон живлення і надійний захист IP67 — вже пережив кілька вологих прибирань без проблем. Рекомендую для агрооб'єктів.
13/05/2025

Buy together with Humidity sensor DOL 104 (140263)

Reviews (1)

Specification Humidity sensor DOL 104 (140263)

Reviews (1)
Accuracy
± 2% RH (40–85 %) ± 3% RH (10–95 %) at 0–40 °C
Ambient temperature
-40 - +60 °C
Cable
2 m 3 x 22 AWG / 0.34 mm²
Current strength, A
12 mA no load, 35 mA max. load
Initial resistance
< 1 Ω
IP protection class
67ip
Loading
> 500 Ω - < 10 MΩ
Maximum cable length
(0.75 mm2) 100 m | (1.5 mm2) 200 m
Maximum current
20 mA
Measurement, shipment
275 x 200 x 20 mm
Output
0.1 V / % RH
Producing country
Denmark
Recommended load
≥ 100kΩ
Sensor length
154 mm
Supply voltage
11 - 30 V DC
Temperature, storage
-40 - -60 C
Time constant
(T63) 20 s at air speed 0.5 m/s
Weight with cable
150 g

Humidity sensor DOL 104 (140263)

7 893 ₴

Відео with Humidity sensor DOL 104 (140263)

Reviews (1)

Humidity sensor DOL 104 (140263)

7 893 ₴

Reviews Humidity sensor DOL 104 (140263)

Reviews (1)
Олександр
Використовую цей датчик для контролю мікроклімату в пташнику. Працює стабільно, передає точні дані по вологості. Підключення без штекера зручне, якщо маєте свою проводку. Радує широкий діапазон живлення і надійний захист IP67 — вже пережив кілька вологих прибирань без проблем. Рекомендую для агрооб'єктів.
13/05/2025
