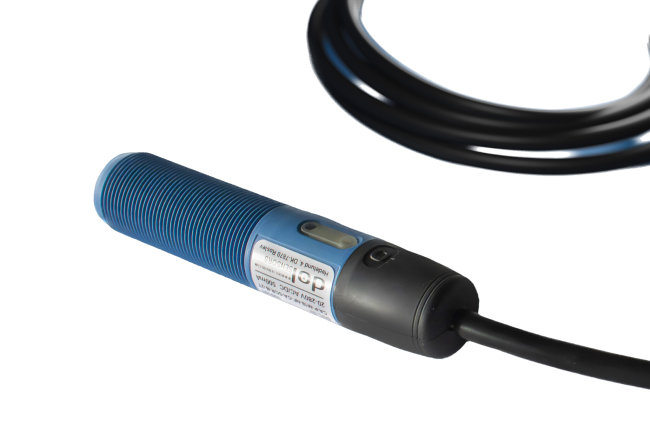

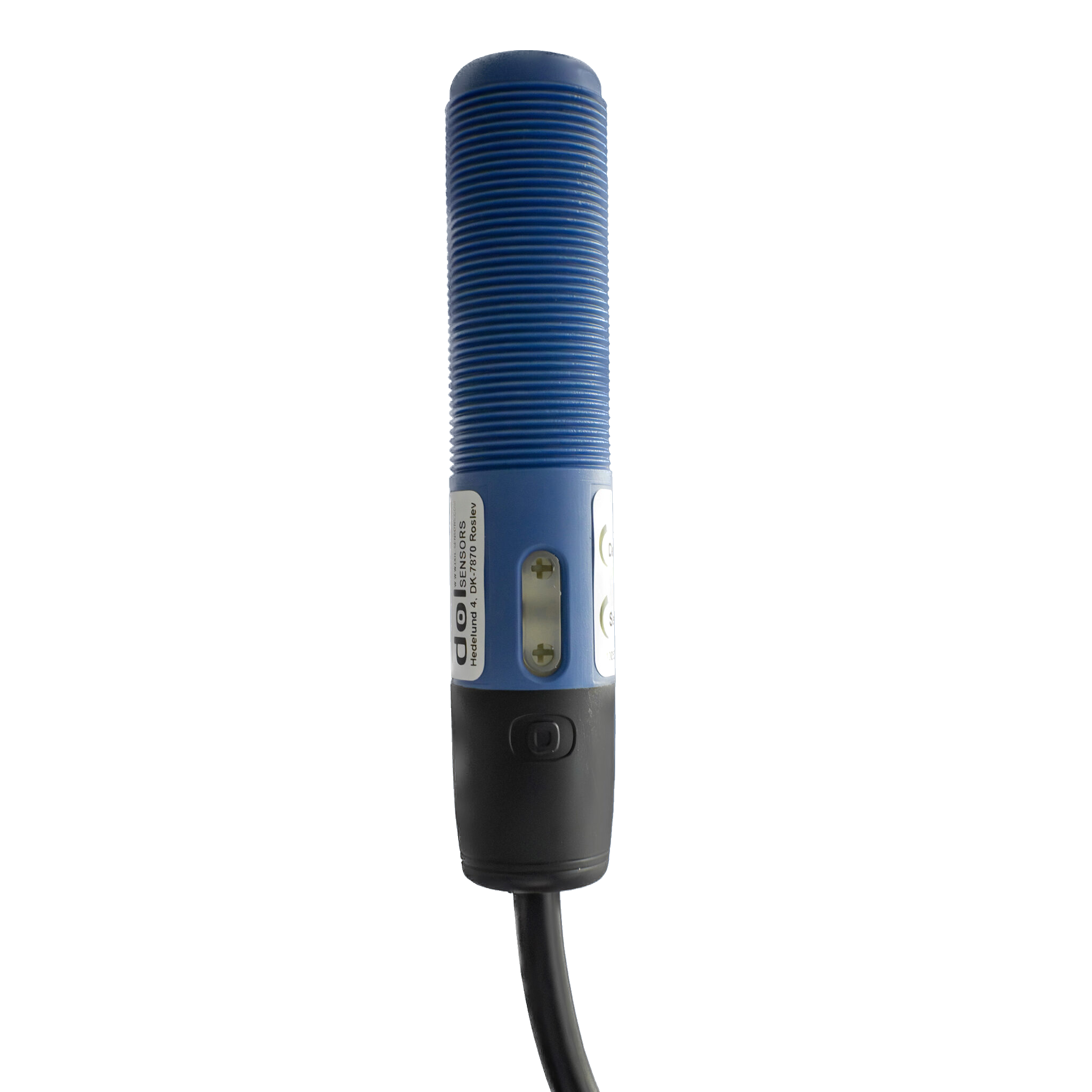

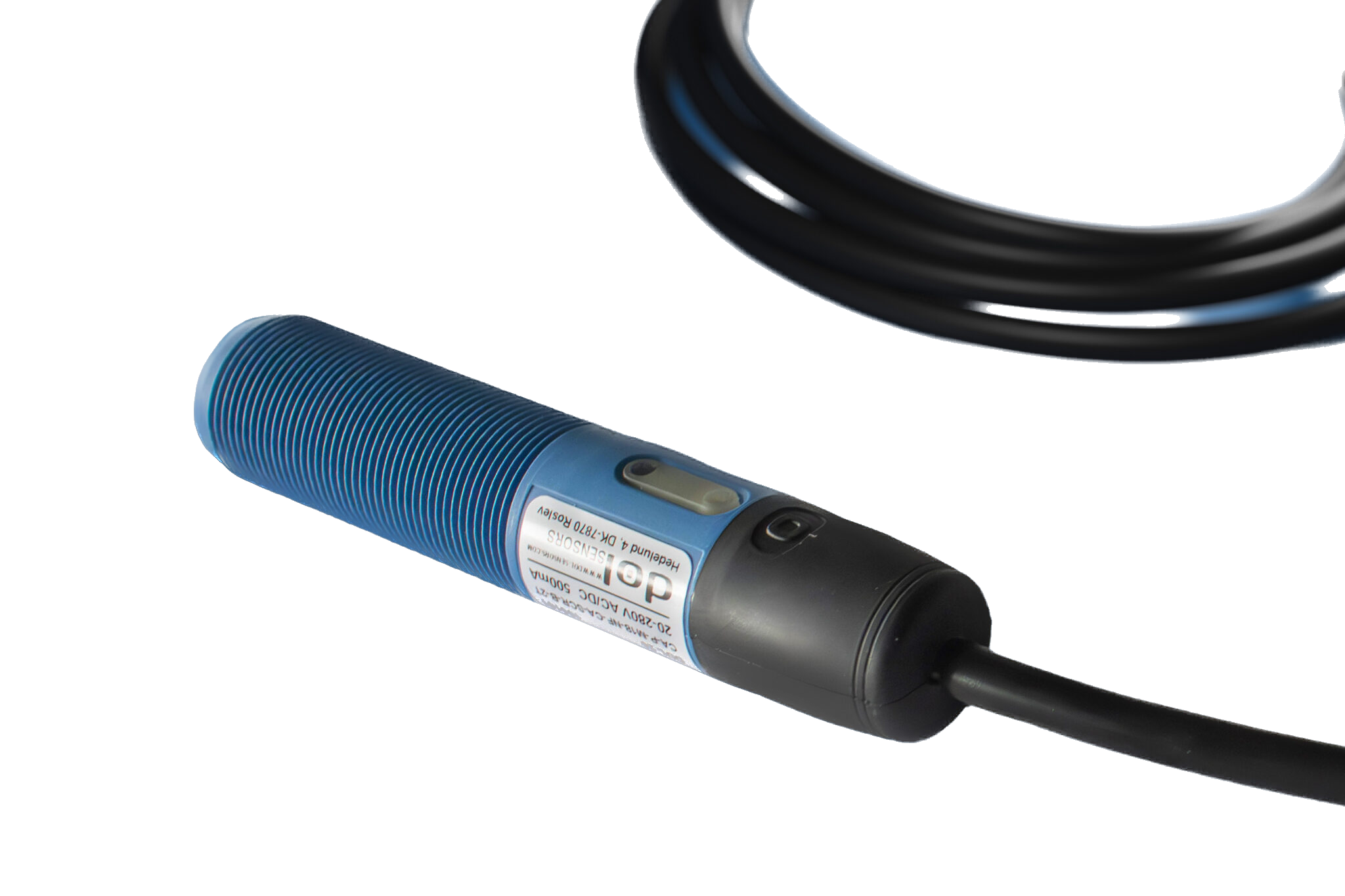

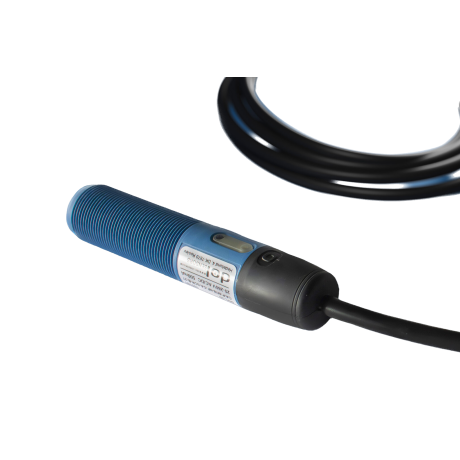

DOL 26 sensor amnesic CA-P-M18-NF-CA-SCR-M-1T,105128

What is the DOL 26 CA-P-M18-NF-CA-SCR-M-1T capacitive sensor and what is it used for?

The DOL 26 CA-P-M18-NF-CA-SCR-M-1T capacitive sensor is a simplified but highly efficient model for AC systems. It combines a reliable M18 threaded housing, universal SCR output, and Make (NO / Normally Open) operating logic.

The main feature of this version (index 1T) is the presence of only one sensitivity regulator. Time delay is absent here (or fixed at minimum). This means that the sensor reacts to the appearance of feed almost instantly, closing the electrical circuit. It is an ideal solution for tasks like "Start on filling" or light indication.

Key advantages of the DOL 26 CA-P-M18-NF-CA-SCR-M-1T sensor

• Make (Closing) Logic. Unlike standard sensors that stop the line, this sensor is designed to start it or signal the presence of a product (contact is open when empty, and closed when full).
• Fast reaction (1T). The absence of a delay timer makes this sensor ideal for processes where prompt information about level changes is needed.
• Setup simplicity. Only one trimmer (Sensitivity). The operator does not need to guess which screw to turn — only the reaction to the feed type is adjusted.
• Universal power supply. Operates in the 20–280 V AC/DC range, which allows connecting it directly to 220V signal lamps.

Applications of the DOL 26 CA-P-M18-NF-CA-SCR-M-1T sensor

This model is used where an active "Feed present" signal is needed:

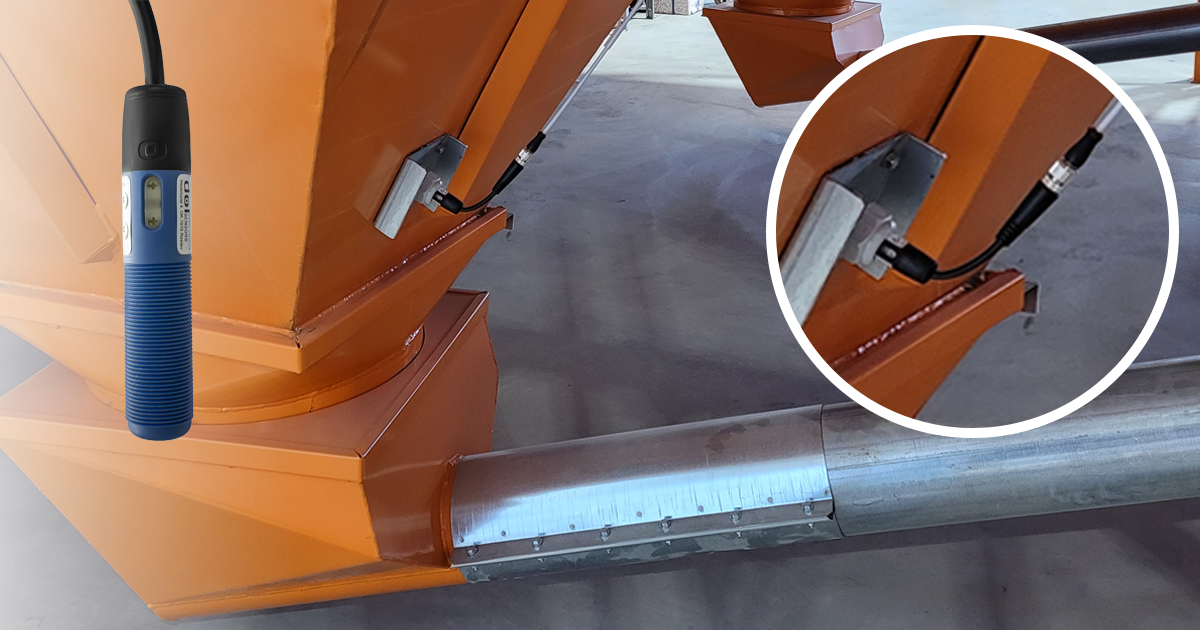

• Light signaling. Connecting a lamp that lights up when the hopper is full.
• Cascading line start. When the filling of the first hopper (Make sensor triggering) gives a command to start the auger to fill the second one.
• Cycle counters. Counting the number of dispenser unloadings (fast 1T reaction is an advantage here).
• Jam detection systems. If feed rises to the sensor in an emergency spot — it closes the siren contact.

Why choose the DOL 26 CA-P-M18-NF-CA-SCR-M-1T sensor

This is a specific tool for a specific task: "saw — turned on". If you do not need complex time settings and work with high voltage (220V), this model is the simplest choice.

Mounting and setting up the DOL 26 CA-P-M18-NF-CA-SCR-M-1T sensor

1. Attention — Make Logic! Remember that this sensor works not on opening, but on closing. Do not replace standard "Stop" sensors with it, otherwise the line will work incorrectly (start only when full).
2. Connection (2-wire): In series with the load (lamp/relay). When power is applied without feed, no current flows (open).
3. Calibration (1T): Fill the sensor with feed. Turn the single screw until the LED lights up (and the contact closes).

Comparison of model M-1T (Make, 1 Trimmer) with others

What are the key differences:

This model is ideal when you need a simple and reliable feed presence indicator in a 220V network.
