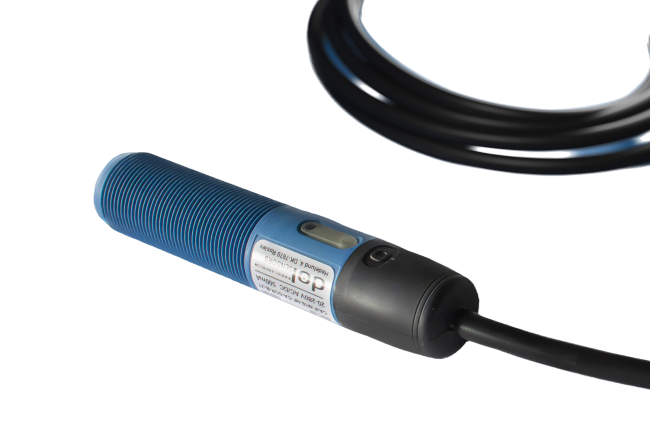

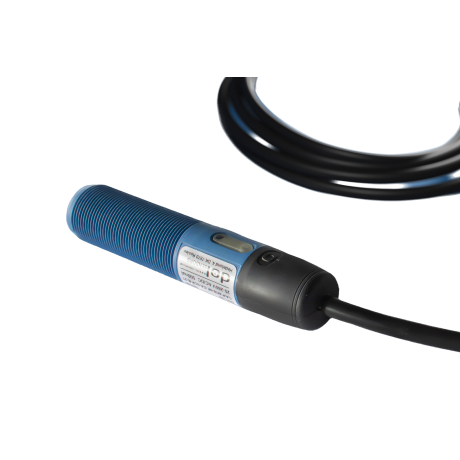

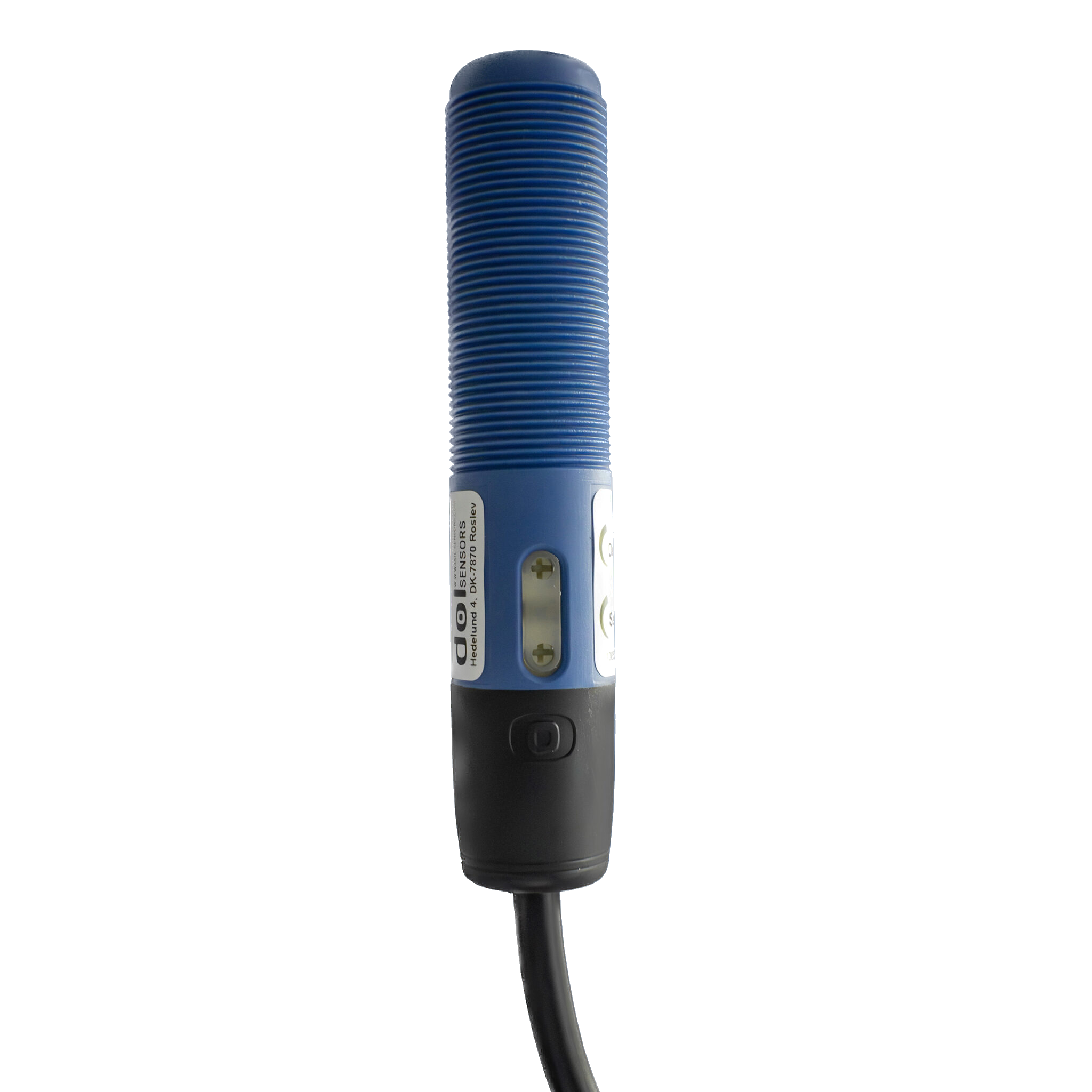

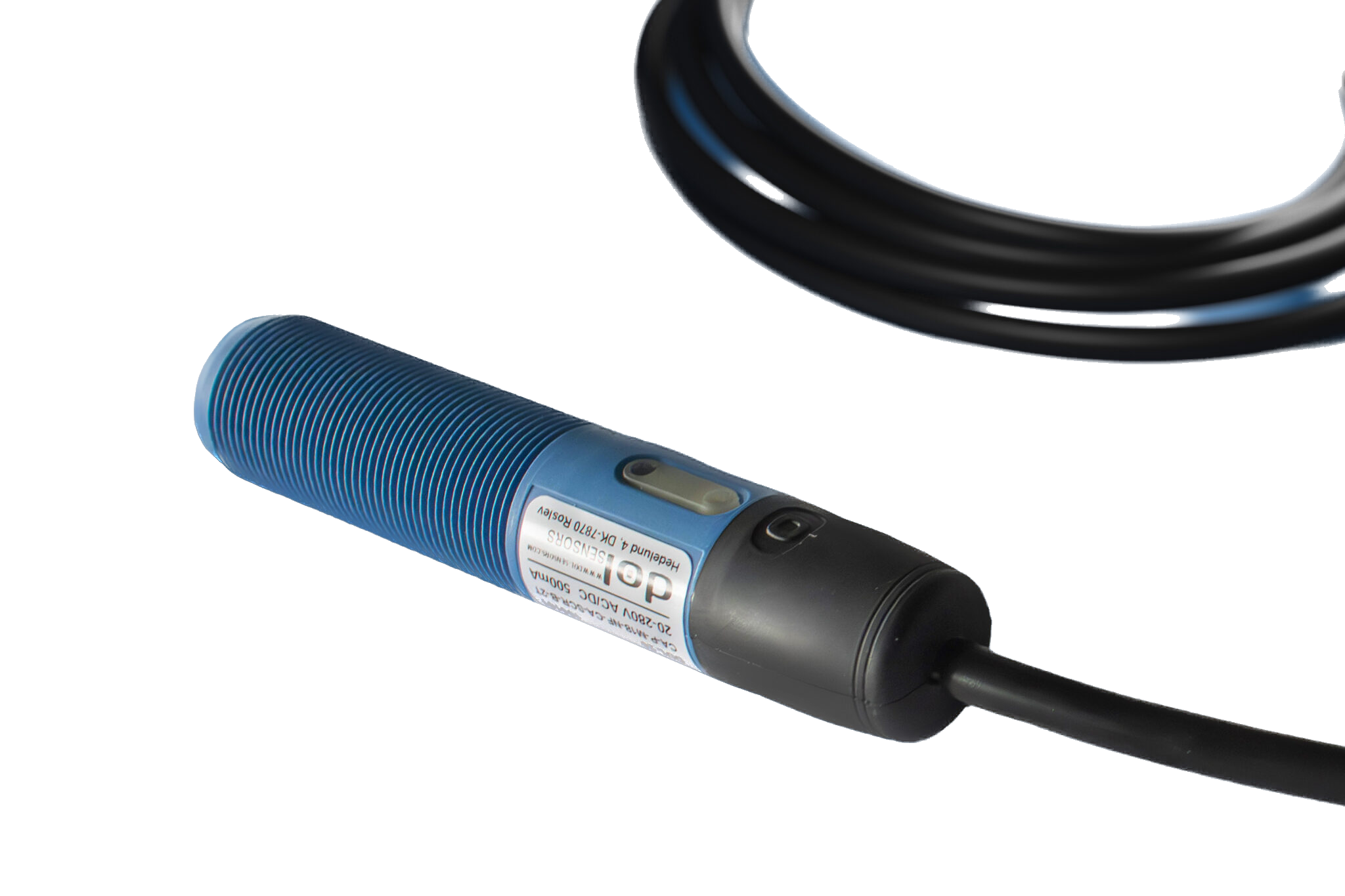

DOL 26 Capacitive feed sensor CA-P-M18-NF-CR-SCR-B-2T, 105201
DOL 26 Capacitive feed sensor CA-P-M18-NF-CR-SCR-B-2T, 105201
In stock in Europe
Article: 105201
3 609 ₴
Features
Brand
Activation distance
0 – 12 mm
Cable
2x0.5 mm² (2x20 AWG)
Cable type
Ul2517
Detection speed
> 15 Hz
Direct connection without damaging the sensor
> 10 times
All characteristics
Description
The DOL 26 and iDOL 26 feed sensors are 18 mm capacity sensors suitable for feeders and level monitoring of silos and elevators. The mechanical design of the DOL 26 and iDOL 26 makes them ideal for use in small rooms with limited space, such as inside feeders in poultry farms and pig farms. This means that the sensor is out of reach of the animals. Advantages • Robust design for agriculture • Different versions for different needs • Low power consumption • Easy to cutBenefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Buy together
DROP TUBE Dol drop tube for capacitive sensors
140135
Producing country: Denmark
In stock in Europe
1 005 ₴
Universal gateway, iDOL 64 (140327)
140327
Frequency: 50-60 Hz
Humidity: 10 - 90 %RH
IP protection class: Ip65
Maximum current: 500mA DC
Number of outputs: 12
Number of ports: 4 pcs M12 port
Output current: 0–24 mA to 200 mA per output
In stock in Europe
105 066 ₴
What is the DOL 26 CA-P-M18-NF-CR-SCR-B-2T capacitive feed sensor and what is it used for?
The DOL 26 CA-P-M18-NF-CR-SCR-B-2T capacitive sensor is the benchmark of durability in the DOL 26 series. This model combines a chemically resistant housing (CR) and reliable threaded mounting (M18). It is designed specifically for stationary installation in the most aggressive zones of livestock complexes, where ordinary plastic deteriorates quickly, and clamp mounting is not reliable enough.
Electrically, it is a universal device (SCR AC/DC) with Break (NC) logic, designed for emergency line stops or overflow control. Thanks to the presence of two trimmers (2T), it can be precisely adapted to any operating conditions.
Key advantages of the DOL 26 CA-P-M18-NF-CR-SCR-B-2T capacitive sensor
- Chemical Protection (CR). The special polymer of the housing is inert to acids, alkalis, and aggressive detergents. This is critically important for piggeries and poultry houses with strict sanitary standards.
- Rigid Fixation (M18). The presence of threads allows the sensor to be tightly secured with two nuts. This eliminates the risk of the sensor slipping or shifting under the influence of auger vibration or high-pressure washing.
- Setting Flexibility (2T). The ability to adjust sensitivity and delay time allows this sensor to be used for specific feeds and additives.
- Connection Versatility (SCR). Works in any 20–280 V network without additional power supplies.
Applications of the DOL 26 CA-P-M18-NF-CR-SCR-B-2T capacitive sensor
This model is indispensable where vibration and aggressive chemistry combine:
- Pig farms with liquid feeding systems. Where contact with an acidic environment is possible, and pipe vibration requires threaded mounting.
- Intensive washing zones. Where a water jet can displace a sensor in a smooth housing but cannot move a threaded M18.
- Medication and additive dispensers. The chemically resistant housing does not react with active substances.
- Outdoor hoppers. CR material better withstands UV radiation and temperature changes.
Why choose the DOL 26 CA-P-M18-NF-CR-SCR-B-2T capacitive sensor
If you are tired of changing sensors because the plastic has become brittle from disinfection, or because the mounting has become loose — this "armored" threaded version will solve both problems.
| Parameter | Value for this model |
|---|---|
| Housing material | CR (Chemically Resistant) |
| Housing type | Threaded M18 |
| Settings | 2 trimmers (Sensitivity + Time) |
| Logic | NC (Break / Normally Closed) |

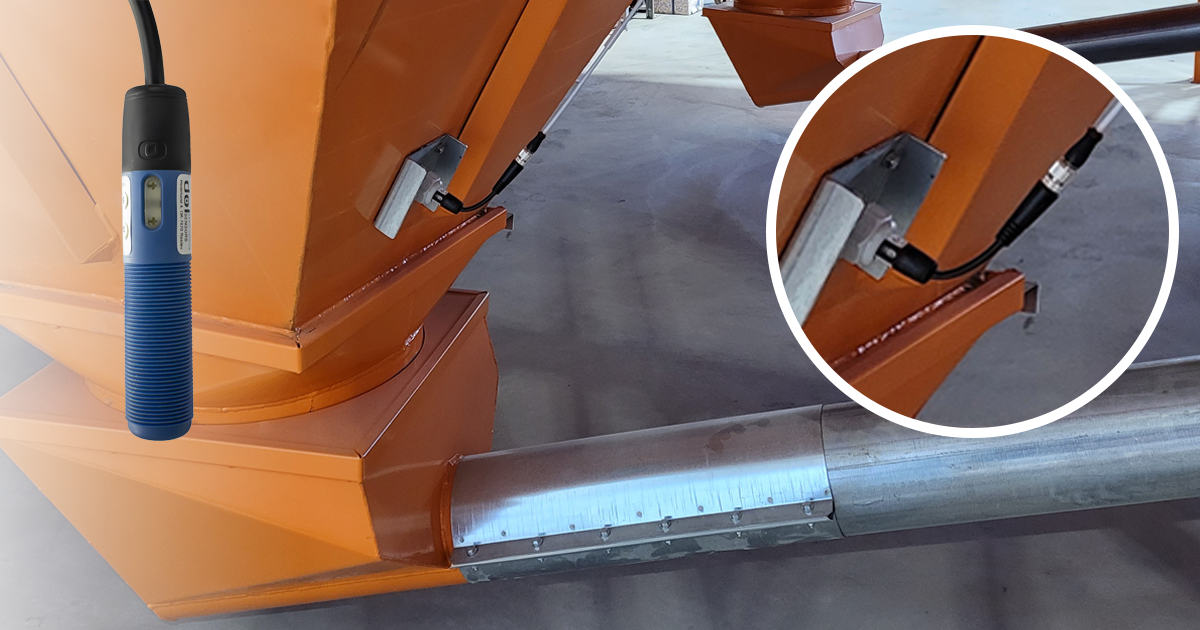

Mounting and setting up the DOL 26 CA-P-M18-NF-CR-SCR-B-2T capacitive sensor
- Mechanical fixation: Insert the sensor into an 18.5 mm hole. Tighten two plastic nuts on both sides of the wall. Ensure the active part (NF) protrudes inside and is not shielded by metal.
- Connection: 2-wire SCR scheme. In series with the load.
- Settings (2T): Open the cover. Adjust "Delay" to filter vibrations and "Sens" to precisely detect your feed type.
Comparison of the M18-CR model with other modifications
What is unique about this combination:
| Characteristic | M18-CR (This model) | Ø18-CR (Smooth) | M18 (Standard) |
|---|---|---|---|
| Mounting type | Nuts (Rigid) | Clamp (Sliding) | Nuts (Rigid) |
| Chemical resistance | Maximum | Maximum | Standard |
| Fixation reliability | High | Medium | High |
This model is the best choice for stationary installation in aggressive conditions.
Features DOL 26 Capacitive feed sensor CA-P-M18-NF-CR-SCR-B-2T, 105201
Activation distance
0 – 12 mm
Cable
2x0.5 mm² (2x20 AWG)
Cable type
Ul2517
Detection speed
> 15 Hz
Direct connection without damaging the sensor
> 10 times
All characteristics
Reviews (7)
Леонід
Як електрик скажу, що це один з найкращих варіантів для агресивних умов. Підключення SCR просте, стає в стандартне місце. Подобається, що він не реагує на пилову плівку, тільки на реальний рівень корму.
05/02/2025
1
Руслан
Використовуємо на лінії подачі мінеральних добавок. Агресивне середовище йому не шкодить. Таймер налаштували швидко, тепер система працює плавно і без ривків. Якісний датчик.
30/10/2025
Світлана
Купили на заміну старому. Цей датчик працює набагато стабільніше. Води під час мийки не боїться. Індикатор яскравий, відразу видно, коли бункер повний. Грошей своїх точно вартує.
18/06/2025
Валерій
Зручні та компактні датчики для годівниць. Працюють точно, легко встановлюються, не бояться вологи чи пилу. Ідеальне рішення для птахофабрик і свинокомплексів. Рекомендую!
21/05/2025
Максим
Працюю з обладнанням для теплиць, там висока вологість і хімія. Цей DOL 26 CR витримує все. Налаштування чутливості просте, спрацьовує чітко на субстрат. Надійна річ, рекомендую.
15/11/2024
Buy together with DOL 26 Capacitive feed sensor CA-P-M18-NF-CR-SCR-B-2T, 105201
Universal gateway, iDOL 64 (140327)
140327
Frequency: 50-60 Hz
Humidity: 10 - 90 %RH
IP protection class: Ip65
Maximum current: 500mA DC
Number of outputs: 12
Number of ports: 4 pcs M12 port
Output current: 0–24 mA to 200 mA per output
105 066 ₴
Specification DOL 26 Capacitive feed sensor CA-P-M18-NF-CR-SCR-B-2T, 105201
Activation distance
0 – 12 mm
Cable
2x0.5 mm² (2x20 AWG)
Cable type
Ul2517
Detection speed
> 15 Hz
Direct connection without damaging the sensor
> 10 times
Frequency
47 - 63 Hz
Hysteresis
4 - 10%
IP protection class
69k (DIN 40050-9) IP | 1, 3, 4, 6, 12, 13 NEMA
Length of cable
2 m
Maximum current
500 mA AC/DC
MaxRunTimer
Off / Interval 1 / Interval 2
Minimum switching current
< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
Number of outputs
1
Output type
Break
Producing country
Denmark
Reproducibility
5%
Safe activation distance
4 – 10 mm
Sensitivity
0-12 mm
Sensor diameter
18 mm
Sensor length
89 mm
Shutdown delay time
0 - 60 s
Starting current
˂ 2.5A in 100 ms
Statement
CE, C-UL, UL
Supply voltage
20 - 280 V AC/DC (Ue)
Switch-on time delay
0
Temperature, storage
-40 - 80 °C
Temperature, use
-20 - +70 °C
Time delay, start
265 ms
Trip current
< 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Type
Voltage drop
<6V AC/DC
Weight with cable
170 g
Working temperature
-20 - +70 °С
DOL 26 Capacitive feed sensor CA-P-M18-NF-CR-SCR-B-2T, 105201
