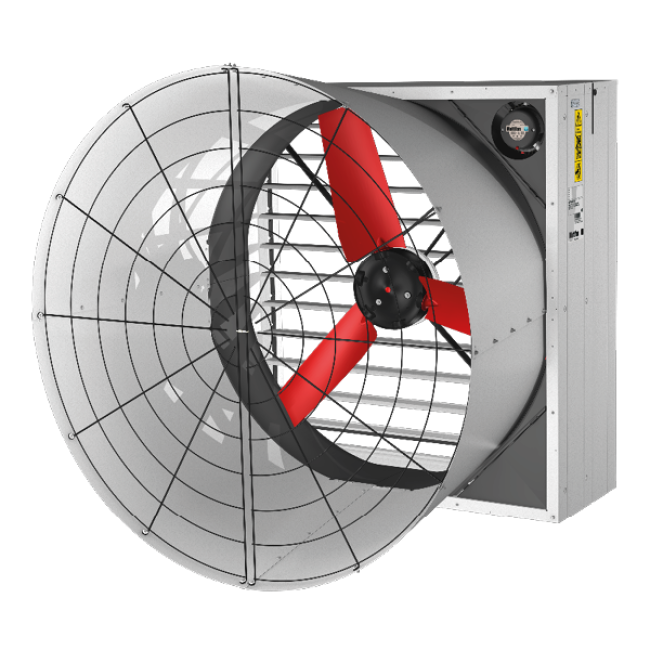

Axial fan, Multifan, 1600 W (G4D14A1M10238)

In stock in Europe

Article: G4D14A1M10238

Write a review

43 681 ₴

Features

Brand

Vostermans

Air volume at 0 Pa (0.00 in. wg)

54000 m3/h

Air volume at 50 Pa (0.2 in. wg)

42600 m3/h

Diameter

1375 mm

Diameter, mm

1375

Fan type

Wall / axial

All characteristics

Download technical documentation

Description

High performance captured in a compact design. Galvanized Box Fans are often used in buildings where a lot of ventilation is required.The box of the fan makes it easy to position the fan in a wall, and to equip your fan with add-ons such as a shutter. In addition, the Galvanized Box Fan can also be combined with light traps or air filters.

Download technical documentation

Benefits and warranty

High quality

The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support

Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices

Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges

We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card
Cash on delivery "Nova Poshta"

Wall-mounted exhaust fan made of galvanised steel Multifan 140 cm 1600 W

The Multifan exhaust fan is an effective solution for providing high-quality ventilation in rooms with high air exchange requirements. The galvanised steel casing ensures reliable corrosion protection, durability and stable operation even in harsh environments.

Product benefits:

High performance: The fan provides intensive air extraction, creating optimal working and storage conditions.
Compact design: The fan's design allows it to be easily built into a wall without taking up too much space.
Additional features: The fan casing supports the installation of optional accessories such as automatic louvres, light reflectors or air filters.
Reliability and durability: Galvanised steel provides resistance to wear, moisture and mechanical damage.
Flexible application: Suitable for a variety of industries due to its versatile characteristics.

Applications:

Agriculture: For poultry houses, pigsties, greenhouses, cowsheds.
Industrial facilities: Production halls, warehouses, logistics centres.
Commercial buildings: Trading halls, workshops, garages.
Public buildings: Sports complexes, exhibition halls, hangars.

The Multifan galvanised steel wall-mounted exhaust fan is the perfect combination of efficiency, durability and flexibility of use. Thanks to the possibility of additional equipment and high performance, this fan will help to create an optimal microclimate in your room.

Features Axial fan, Multifan, 1600 W (G4D14A1M10238)

Air volume at 0 Pa (0.00 in. wg)

54000 m3/h

Air volume at 50 Pa (0.2 in. wg)

42600 m3/h

Diameter

1375 mm

Diameter, mm

1375

Fan type

Wall / axial

All characteristics

Reviews (0)

There are no reviews for this product.

Buy together with Axial fan, Multifan, 1600 W (G4D14A1M10238)

Specification Axial fan, Multifan, 1600 W (G4D14A1M10238)

Air volume at 0 Pa (0.00 in. wg)

54000 m3/h

Air volume at 50 Pa (0.2 in. wg)

42600 m3/h

Diameter

1375 mm

Diameter, mm

1375

Fan type

Wall / axial

Frequency

50 Hz

Insulation Class

Cl.f

IP Class

Ip55

Material

Max. ambient temperature

40 °C

Maximum current

6.1/3.6 A

Min. ambient temperature

-25 °C

Phase

Power consumption

1600 W

Rated current, A

560/320 mA

Voltage

230/400 V

Weight

104.1 kg

Weight, kg

104.1

Леза
