DOL 26 Amnesiac sensor CA-P-18-NF-CA-SCR-B-0T, 105139

What is the DOL 26 CA-P-18-NF-CA-SCR-B-0T capacitive sensor and what is it used for?

The DOL 26 CA-P-18-NF-CA-SCR-B-0T capacitive sensor is a "Fit and Forget" category model, made in a smooth housing (Ø18 mm) without thread. It is designed for specific mounting conditions (glands, clamps), where the use of nuts is impossible, and personnel access to settings needs to be limited.

The 0T (Zero Trimmers) index guarantees that the sensor sensitivity is factory calibrated and fixed forever. Combined with Break (NC) logic and universal SCR power supply, this is the most reliable solution for standard feeding lines where hygiene and the absence of human error are important.

Key advantages of the DOL 26 CA-P-18-NF-CA-SCR-B-0T capacitive sensor

• Absolute protection (0T + Smooth). Unique combination: no thread for dirt accumulation and no screws for incorrect setting. The sensor always remains clean and works as intended by the factory.
• Instant mounting. Simply insert the sensor into the feeder's rubber seal to the required depth. No nuts, keys, or screwdrivers.
• Versatility (SCR). Connects in series with the 20–280 V AC/DC power circuit.
• Stop logic (Break). Opens the contact when feed is present, stopping the auger.

Applications of the DOL 26 CA-P-18-NF-CA-SCR-B-0T capacitive sensor

This model is ideally suitable for large complexes with standard equipment:

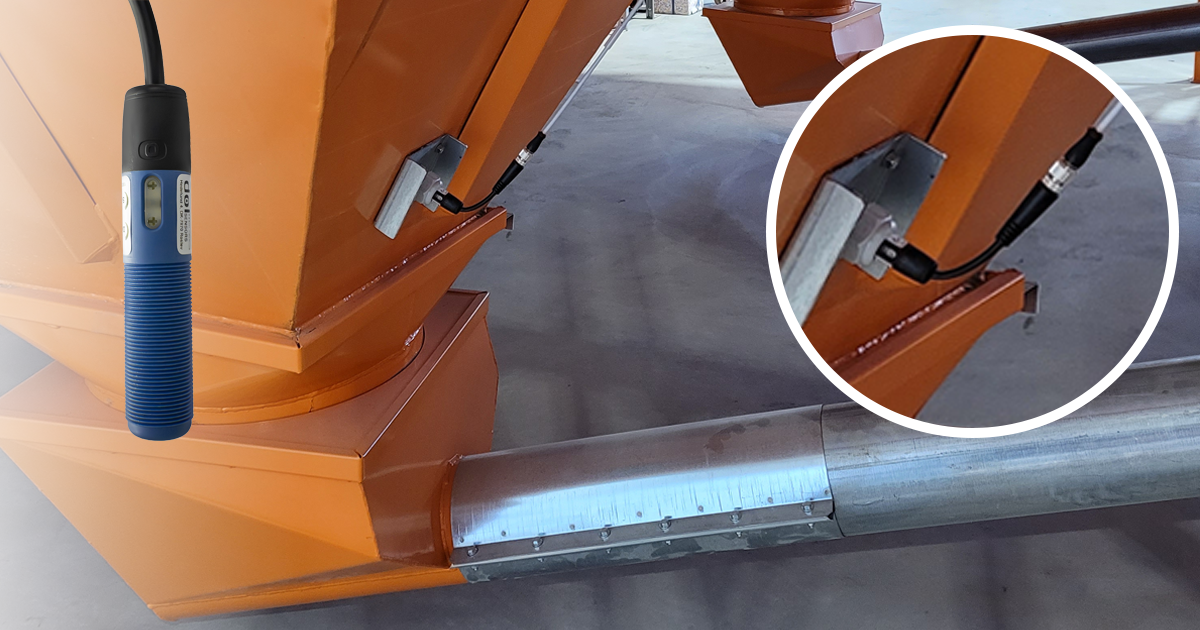

• Feeders with sealing rings. Where a threaded sensor would simply damage the rubber, while a smooth one ensures tightness.
• Clean Rooms. The smooth surface of the sensor is washed many times faster and better than a threaded one.
• Lines with low-skilled personnel. To avoid situations "I tweaked something, and it stopped working".
• Standard dry feed. Factory settings are ideal for grain and pellets.

Why choose the DOL 26 CA-P-18-NF-CA-SCR-B-0T capacitive sensor

This is a choice in favor of simplicity and sanitation. If you need a sensor that is easy to wash, easy to install, and impossible to break with incorrect settings — this is your option.

Mounting and connection of the DOL 26 CA-P-18-NF-CA-SCR-B-0T capacitive sensor

1. Installation: Insert the sensor through the gland or clamp with a clip. Adjust the activation height by the sensor immersion depth, as there is no electronic adjustment.
2. Connection: 2-wire scheme. One wire to power, the other to load. Polarity does not matter.
3. Maintenance: Periodically wipe the smooth sensor surface. The absence of thread makes this process very fast.

Comparison of the smooth 0T model with threaded and adjustable ones

Where this model fits in the lineup:

This model is the standard of simplicity and hygiene.
