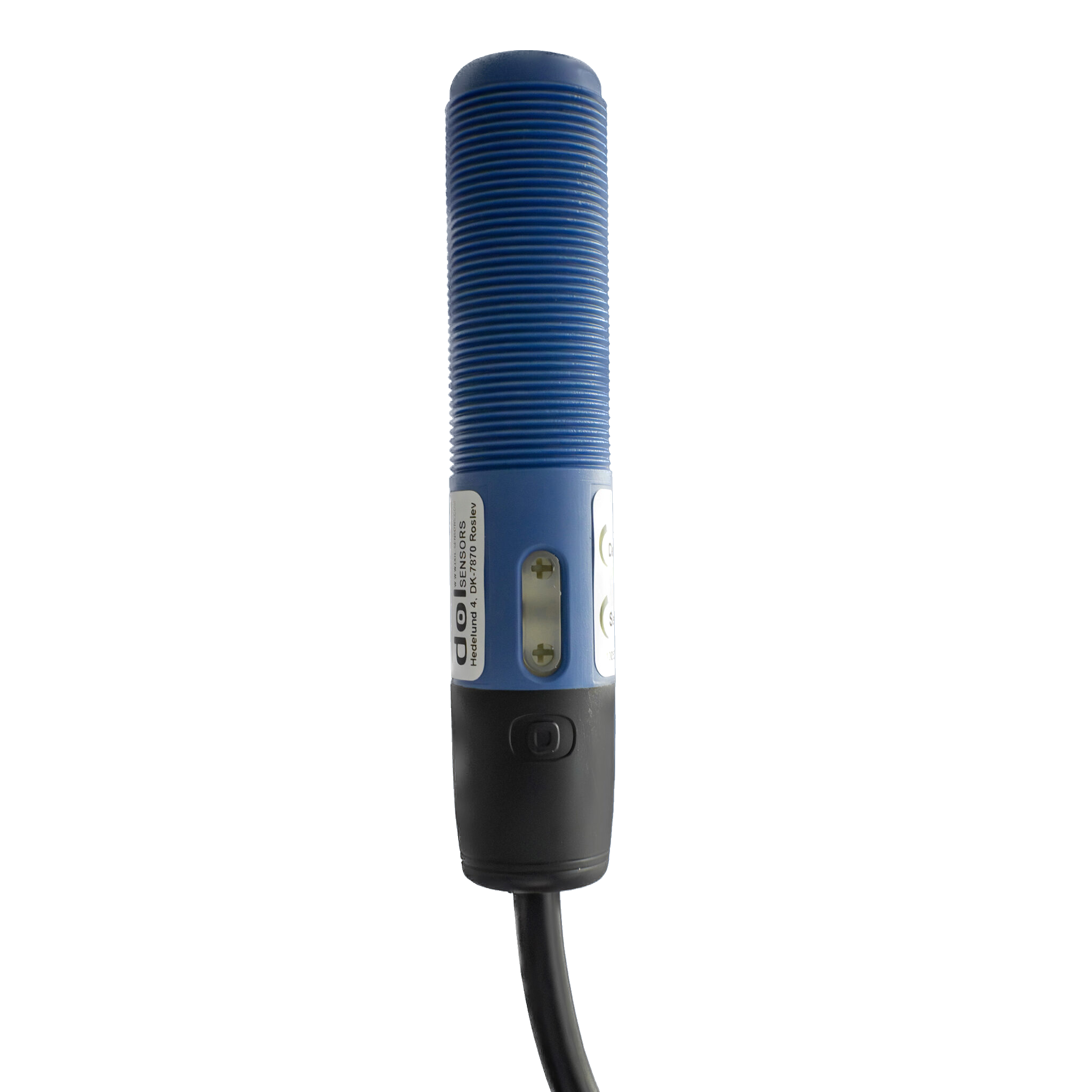

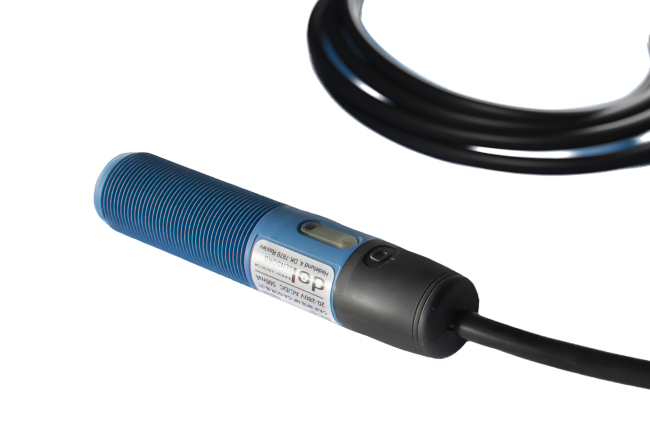

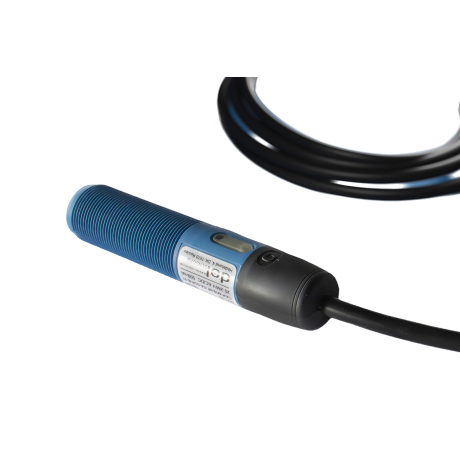

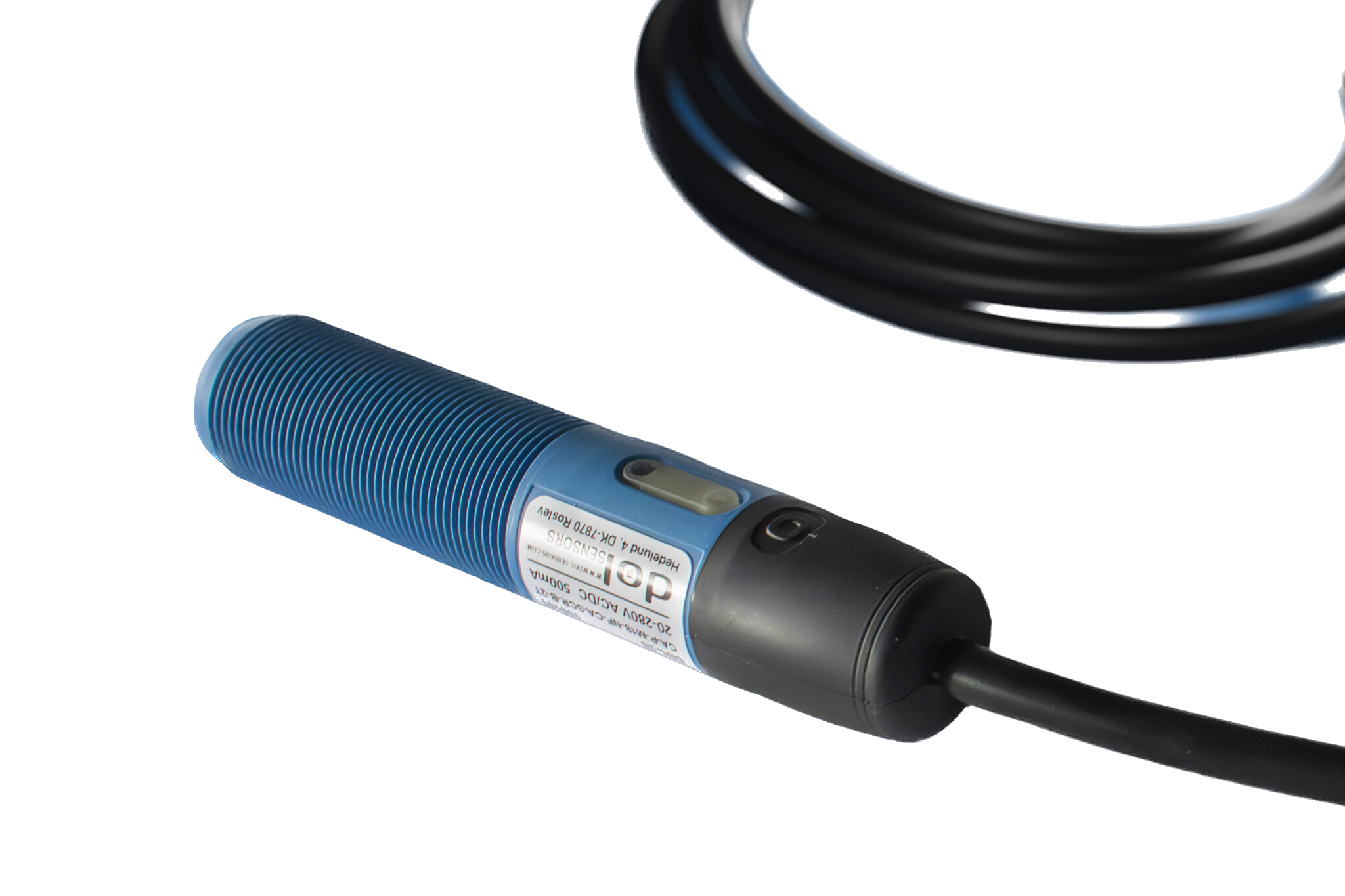

DOL 26 Capacity sensor CA-P-M18-NF-CR-SCR-B-2T,105205
DOL 26 Capacity sensor CA-P-M18-NF-CR-SCR-B-2T,105205
Features
All characteristics
Description
Capacity sensors DOL 26 and iDOL 26 - these are small sensors with a size of 18 mm, which are suitable for the year. Due to the mechanical design of the DOL 26 and iDOL 26 sensors, they are ideally suited for installation in small spaces with limited space, for example, in the middle of a poultry factory. In this way, the sensor is kept inaccessible to creatures. Advantages • Excellent design for rural government • Various versions for different needs • Low energy consumption • Easy to cutBenefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Capacitive Level Sensor DOL 26 CA-P-M18-NF-CR-SCR-B-2T (2-wire with Timer)
The DOL 26 CA-P-M18-NF-CR-SCR-B-2T is an intelligent capacitive sensor in a compact M18 body, specifically engineered for precision level control of feed and grain. The standout feature of the 2T modification is the two integrated trimmers, allowing users to adjust both material sensitivity and time delay. This professional solution prevents excessive motor starts during feed level fluctuations, significantly extending the service life of the equipment.
Equipped with a thyristor SCR output and a two-wire connection, this model is perfect for replacing mechanical limit switches without additional wiring. The Break (NC) operating logic ensures the auger stops automatically when feed reaches the sensor. The NF (Non-Flush) design with a protruding head ensures excellent response to light bulk materials, while the CR (Chemical Resistant) housing protects the electronics from ammonia and moisture.
Installation

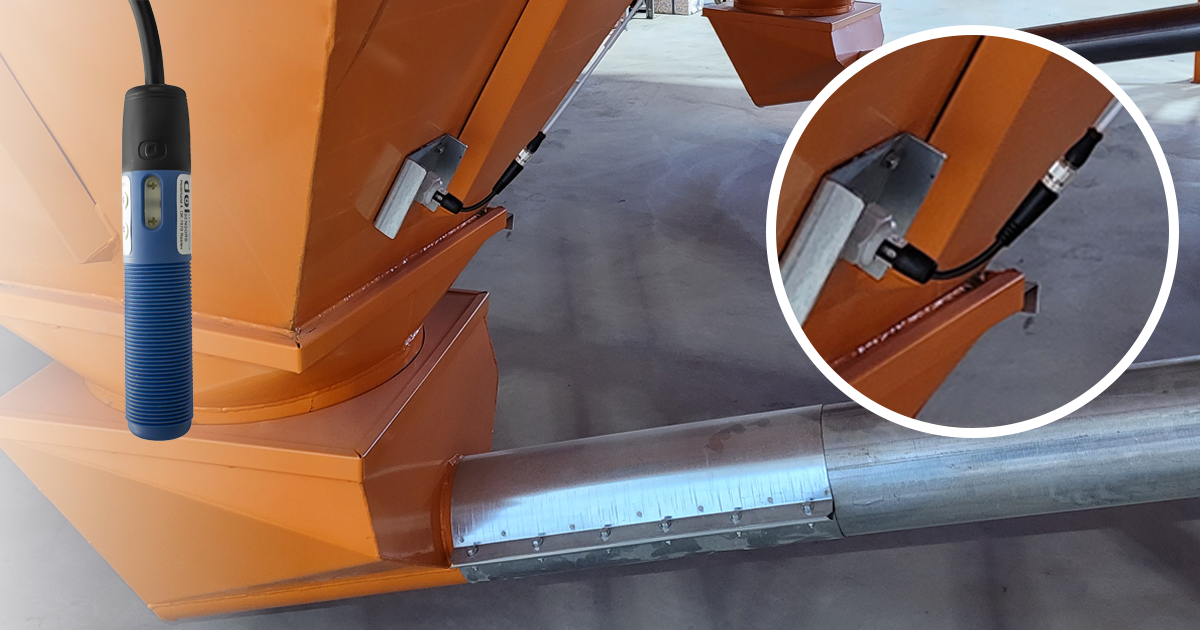

The DOL 26 2T sensor is installed in an 18 mm diameter mounting hole and secured with nuts. As a Non-Flush (NF) type, it is crucial that the sensing head protrudes into the hopper and does not touch metal side walls. After mechanical installation, two trimmers are adjusted using a small screwdriver: sensitivity (SENS) to filter out dust, and time delay (TIME) to stabilize the system. The two-wire SCR connection requires the sensor to be connected in series with the load (relay or contactor coil).
Technical Specifications (2T-SCR)
| Parameter | Value |
|---|---|
| Output Type | SCR (2-wire) |
| Operating Logic | Break (NC / Normally Closed) |
| Adjustment (2T) | Sensitivity + Time Delay |
| Protection Rating | IP69K (Fully Hermetic) |
| Supply Voltage | 20 – 280 V AC/DC |
DOL 26 SCR-B-2T — complete control and intelligent stability for your feeding system.
